Pneutork offers HIGHFLOW piston type solenoid valves, are specially engineered in the construction of Investment cast CF8/CF8M body for multiple and long lasting operations, especially in Steam & High temperature fluids. Valve for the inflammable media / environment / flameproof / Explosion proof solenoid coils are available in such application.
1/2" to 2" (15MM TO 50MM)
Suitable for Dry Steam Hot water temperature limited upto 95OC only Avoid Back Pressure INSTALLTION OF “FILTER” IN INLET SIDE HIGHLY RECOMMENDED.

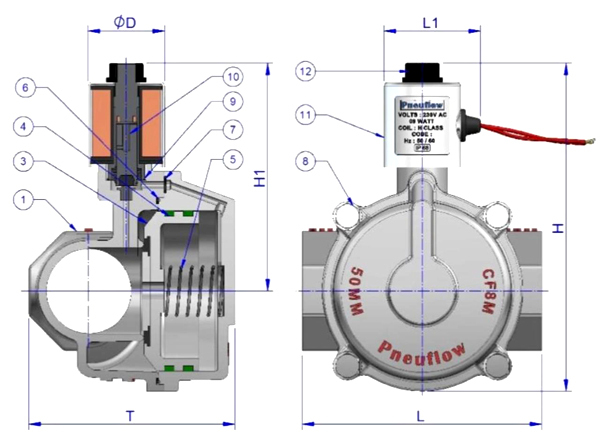

| No. | Description | Material | Qty. |
|---|---|---|---|
| 1 | Body | CF8/CF8M | 01 |
| 2 | Cover | CF8/CF8M | 01 |
| 3 | Piston with Seat | NBR / EPDM / VITON | 01 |
| 4 | Piston Ring | CFT / PEAK | 01 |
| 5 | Spring | Spring Steel | 01 |
| 6 | Cover O-Ring | NBR/EPDM/VITON | 01 |
| 7 | O-Ring | NBR/EPDM/VITON | 01 |
| 8 | Hex Bolt + Nut | S.S. 304 | 01 |
| 9 | Plunger O-Ring | NBR/EPDM/VITON | 01 |
| 10 | Plunger Set | STD. | 01 |
| 11 | Solenoid Coil | STD. | 01 |
| 12 | Plunger Nut | S.S. 304 | 01 |
| Valve Size in MM | Valve size in Inch | L | ØD | L1 | T | H | H1 | |
|---|---|---|---|---|---|---|---|---|
| 15MM | 1/2" | 67 | 40 | 75 | 66 | 125 | 95 | |
| 20MM | 3/4" | 81 | 40 | 75 | 75 | 132 | 97 | |
| 25MM | 1" | 96 | 40 | 75 | 78 | 148 | 105 | |
| 40MM | 1.1/2” | 108 | 40 | 75 | 96 | 160 | 108 | |
| 50MM | 2” | 132 | 40 | 75 | 114 | 183 | 126 | |
| Voltage | 230VAC | 110VAC | 24VDC | 24VDC | 12VDC |
| Power | 9W | 9W | 9W | 11W | 11W |
| Pressure Rating | 0.5 to 12 Bar max |
|---|---|
| Temperature | -10°C to 180°C |
| Coil Voltage | 24V, 48V, 110V, 230V AC/DC |
| Coil Insulation | F Class / H Class |
| Coil Enclosure | IP 67 (Flame proof / Explosion proof as per IS IEC 60079-1 STD for Class II A, II B, II C Zone. |
| Coil Rating | Continuous Rated. |
| Ends | Screwed End / Flanged End 150# / TC END |
| APPLICATION | HOT WATER / STEAM / HIGH TEMPERATURE FLUIDS |
