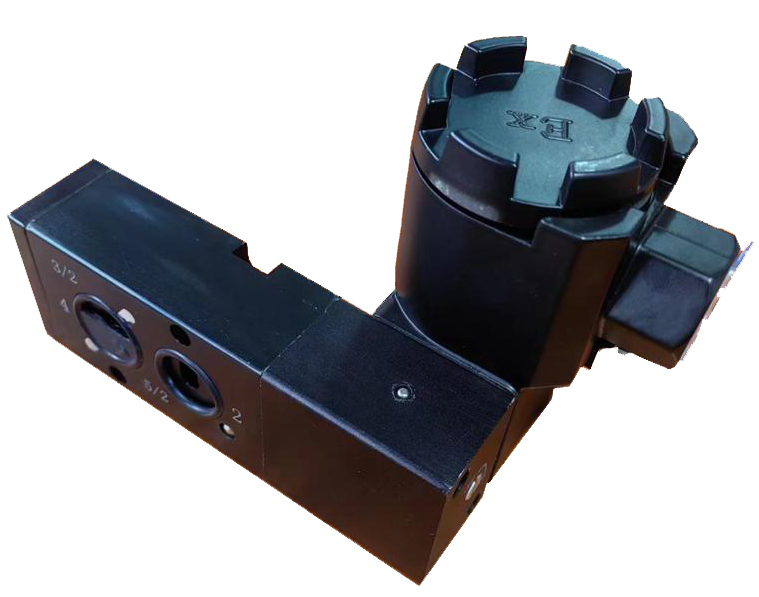

ST SERIES IP 66 ExdIICT6 DIPA21 TA,T6

• Type	5/2 – 3/2 way Single Coil
  Body	Extruded Aluminium
  Finishing	Anodized
  Seal	NBR
  Material in contact with fluid	Aluminium, forces nylon, NBR
  CV function & CV Value	5/2 & 3/2 NC CV 1.4 (25MM)
  Port Size	¼” BSP OR NPT ¼”
  Voltage	220VAC / 110VAC / 24VAC / 24VDC / 12VDC Explosion Proof Coil - with wire available
  Mount Standard	Namur
  Manual Override	Locking Type
  Duty cycles	100% ED
  Max. Operating frequency	3 ~ 5 cycle / Sec PER stop
  Respond Time	0.05 seconds
  Operating temperature	-20°C-70°C
  Protection Class	IP 66
  Ex proof class	ExdIICT6, DIPA20 TA, T6
  Fluid	Dry Air

•
