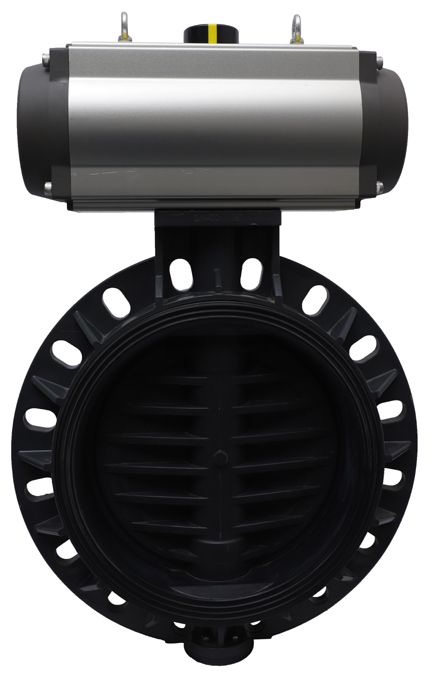

Pneutork offers ISO 5211 pneumatic rotary actuator operated Alumnium body butterfly valve
On/Off Actuator
NAMUR Standard solenoid valve in all standard coil voltage
(Flame proof solenoid coil on request)
Pneumatic & Electro pneumatic valve positioner.
Declutchable Manual Over ride
Limit Switch for on/off indication at panel board.
Air filter + Regulator combination with pressure Gauge
Air Lock Valve
| Valve Type | Wafer type |
|---|---|
| Body Type | Short Wafer Type (sandwichd between flanges) |
| Seat Type | Soft seat |
| End Connection | Wafer Sandwiched |
| Pressure Rating | PN 10 / PN16 (Maximum) |
| Oper. Temp. Range | -20ºC to 180ºC |
| Seat Leakage | CLASS VI |
| Item | Type of Test | Testing Pressure | Working Pressure |
Operating Temperature
Normal |
High |
|---|---|---|---|---|---|
| Actuator | Pneumatic Bubble Test | 150 PSIG | 45 PSI to 150 PSI | -20ºC TO 80ºC | High. Temp. On Request |
| Valve body | Hydraulic | 300 PSIG | 225 PSIG FOR PN16 | Max. 200ºC | High. Temp. On Request |
| Seat | Hydraulic | 225 PSIG | 225 PSIG FOR Pn16 | Max. 200ºC | High. Temp. On Request |

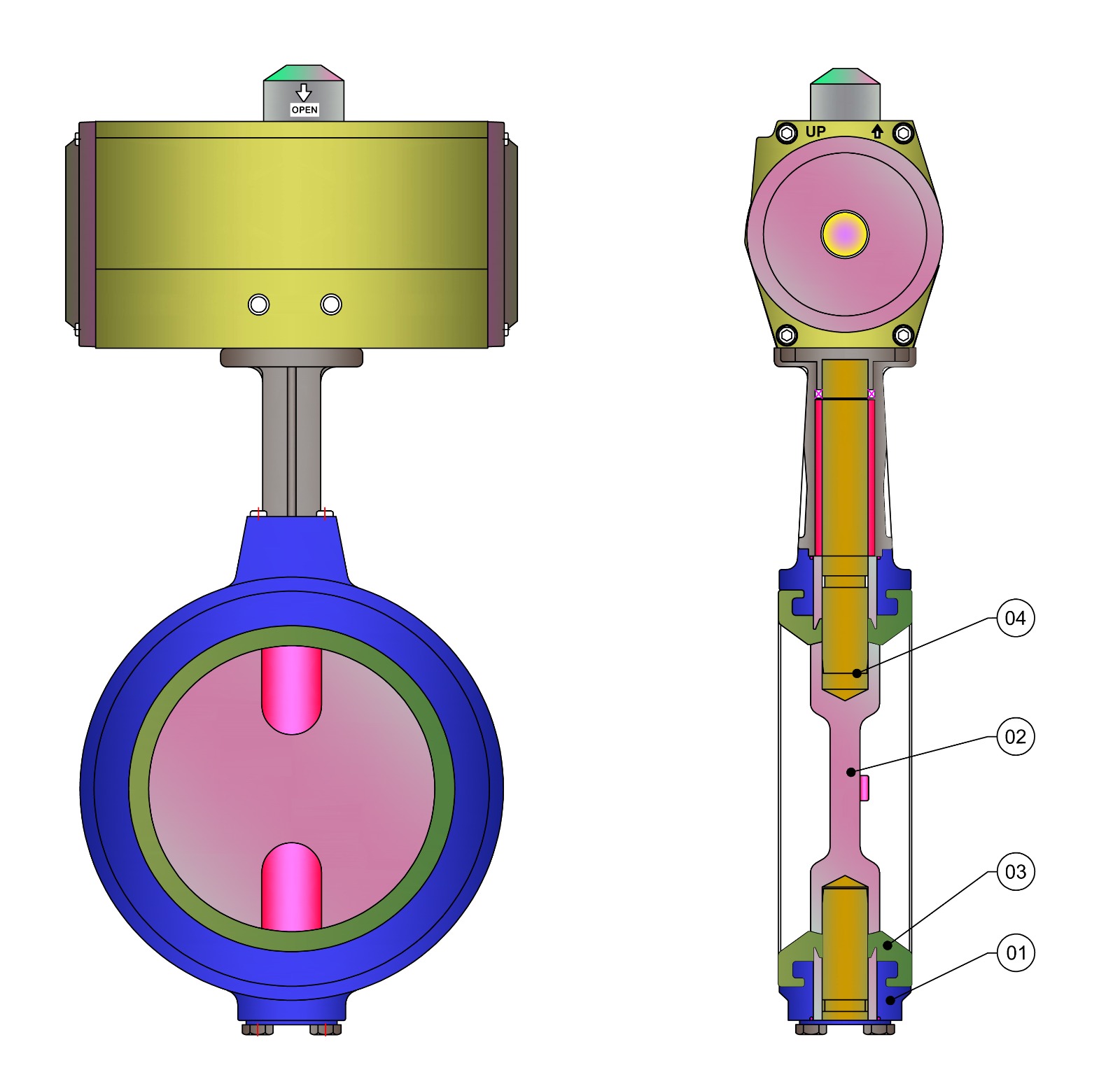

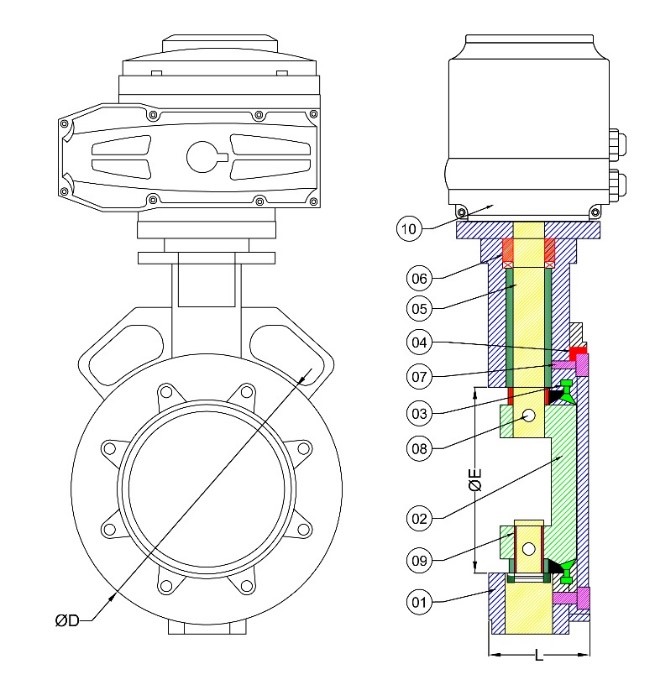

| No. | Description | Material |
|---|---|---|
| 1 | Body | Aluminium Pressure Die Cast |
| 2 | Disc | S. S. 304 / S. S. 316 |
| 3 | Seat | EPDM/Silicon |
| 4 | Shaft | AISI 304 / AISI 316 |
| 5 | Pneumatic Actuator | Standard |
|
Valve Size
MM |

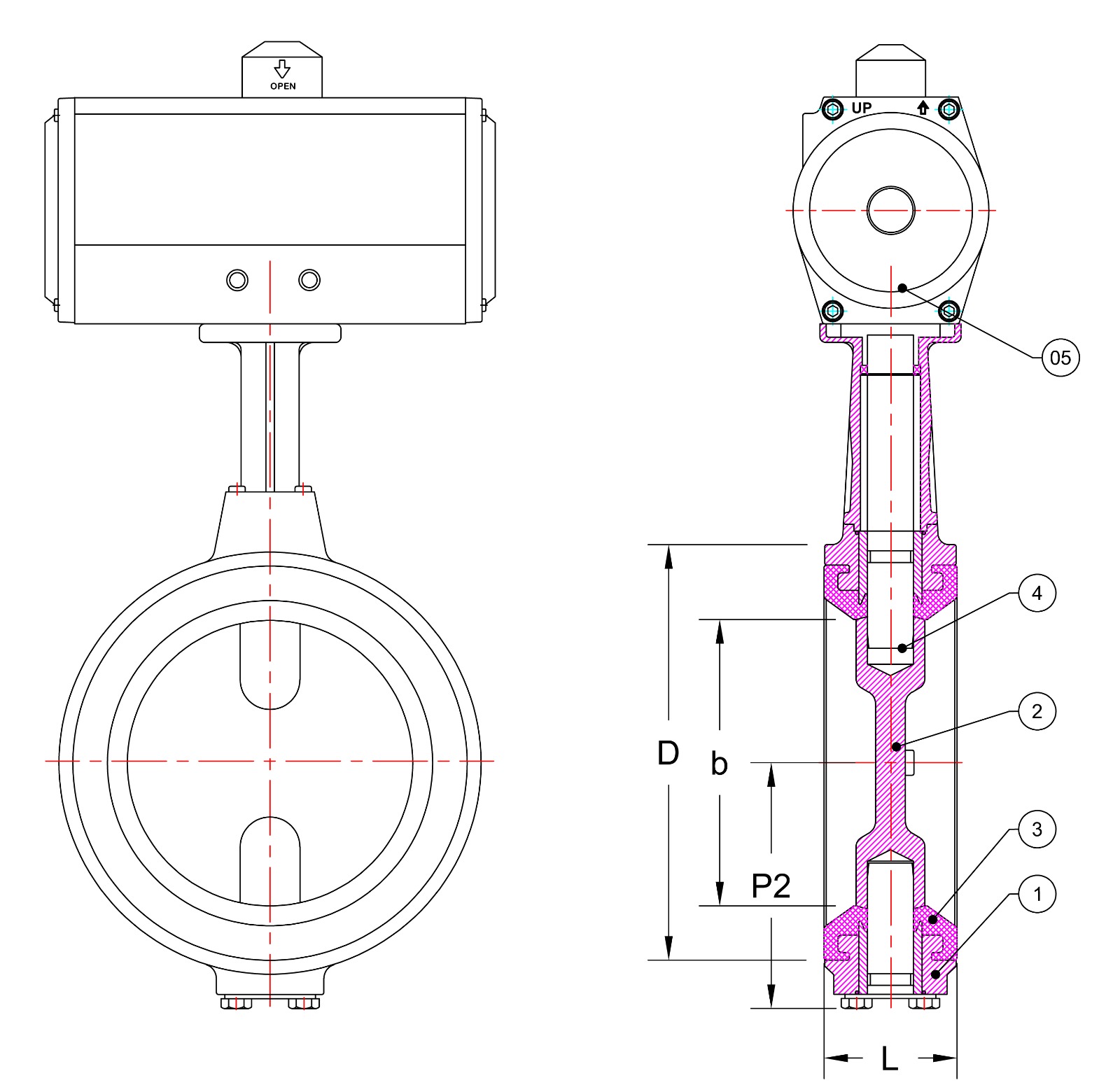

Inch | b | P2 | L | D |
|---|---|---|---|---|---|
| 40 | 1.1/2" | 40 | 60 | 33 | 78 |
| 50 | 2" | 50 | 66 | 46 | 118 |
| 65 | 2.1/2" | 65 | 74 | 46 | 129 |
| 80 | 3" | 80 | 83 | 46 | 118 |
| 100 | 4" | 100 | 94 | 52 | 149 |
| 125 | 5" | 125 | 122 | 56 | 184 |
| 150 | 6” | 150 | 135 | 56 | 214 |
| 200 | 8" | 196 | 161 | 60 | 259 |
