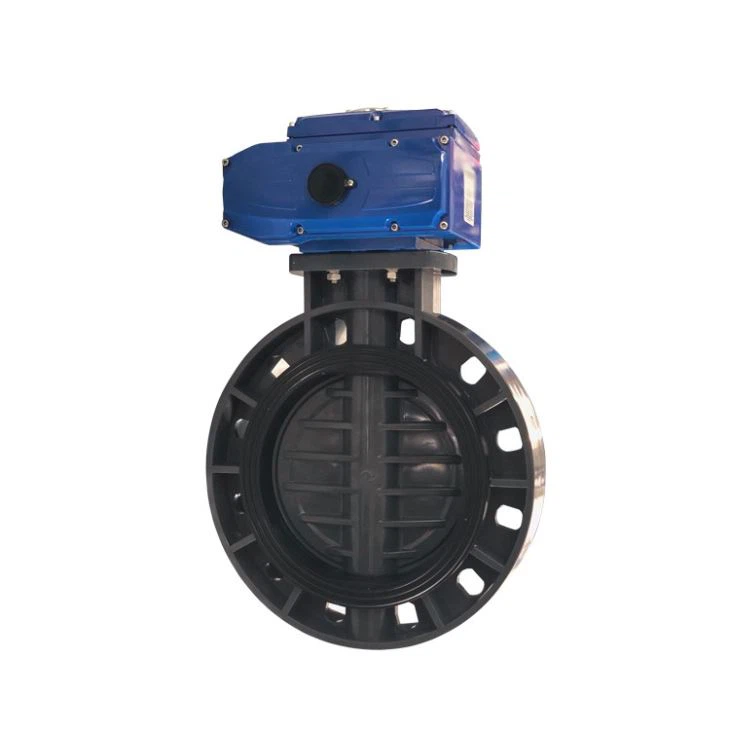

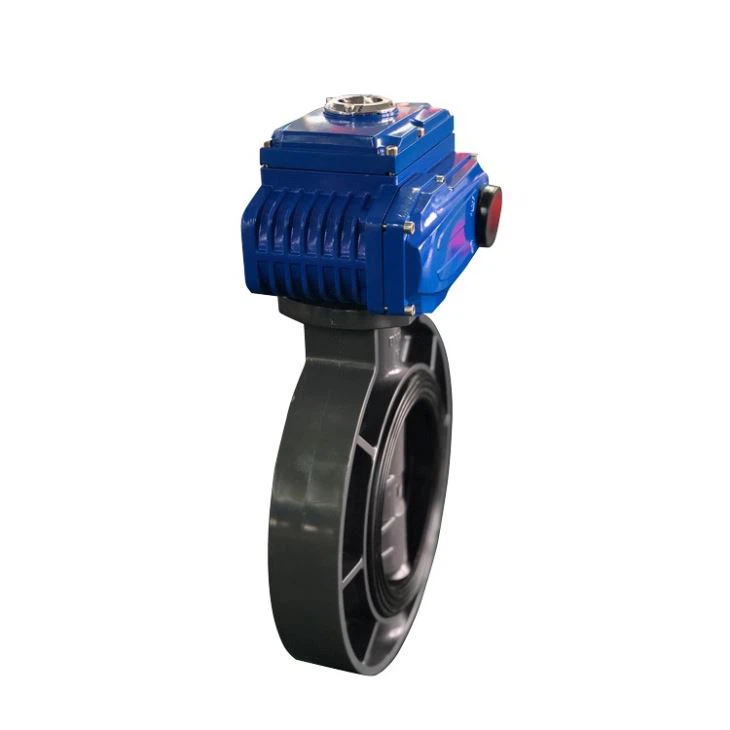

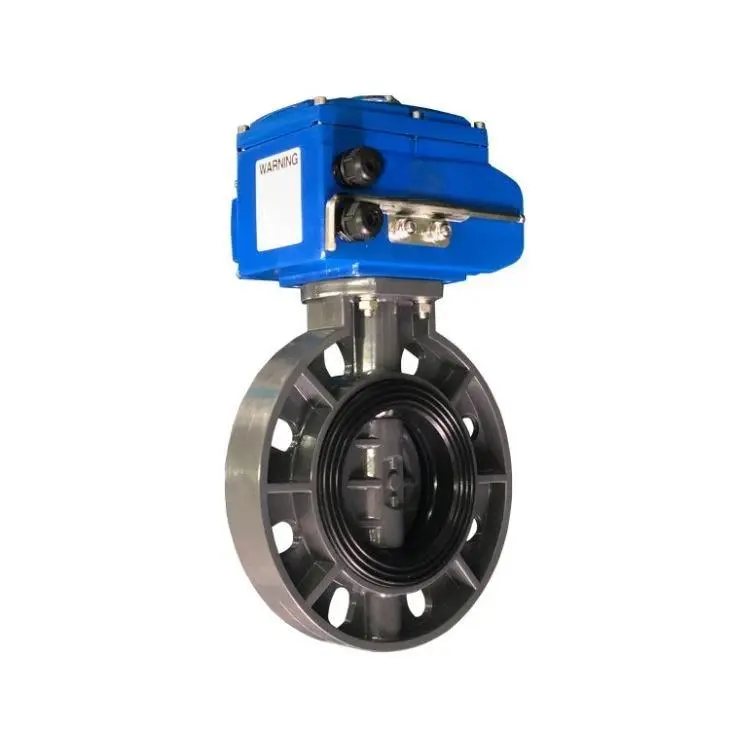

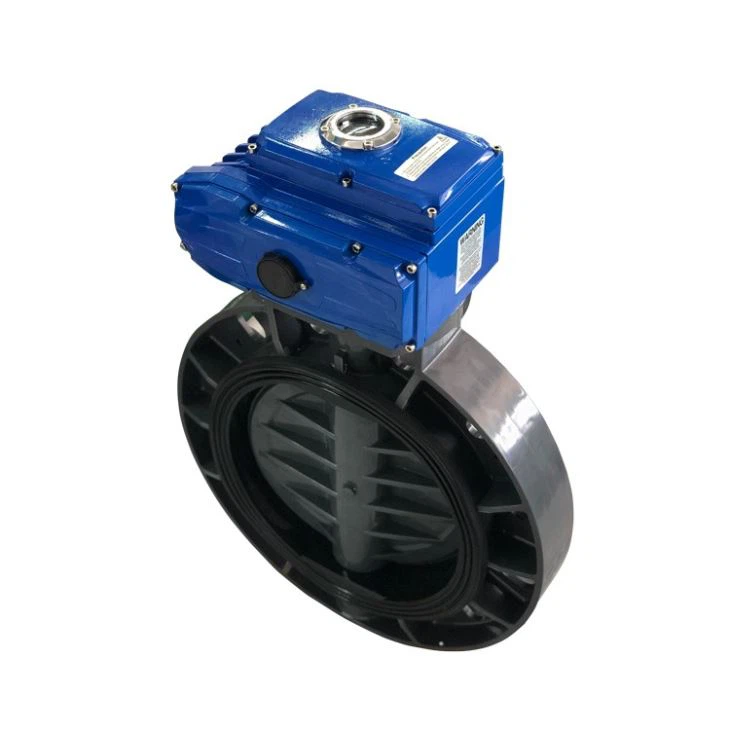

Pneutork make electrical On/Off, Modulating and integral starter UPVC butterfly valve now come with an update design that offers angle switching control. Increased neck height makes it easier to install. Sealing surface and through hole are processed on CNC machines for reliable and enhanced sealing performance.
| Body | UPVC |
|---|---|
| Disc | Polypropylene |
| Pressure | 7kg/cm2 |
| Temperature | Upto 80OC |
| End | Wafer type |
| Item | Type of Test | Testing Pressure |
Operating Temperature
Normal |
|---|---|---|---|
| Valve Body | Hydraulic | 150 PSIG | Max. 80ºC |
| Seat | Hydraulic | 100 PSIG | Max. 80ºC |
| No. | Description | Material | Qty. |
|---|---|---|---|
| 1 | Body | UPVC | 01 |
| 2 | Disc | Polypropylene | 01 |
| 3 | Shaft | AISI 410 | 01 |
| 4 | Seat | NBR | 01 |
| 5 | Electric Actuator | Standard. | 01 |
|
Valve Size
MM |
Inch | Port | L | ØD | ØJ | N | PCD |
|---|---|---|---|---|---|---|---|
| 50 | 2” | 54 | 44.5 | 160 | 20 | 4 | 123 |
| 65 | 2.1/2” | 67 | 48 | 184 | 21 | 4 | 143 |
| 80 | 3” | 83 | 53 | 198 | 21 | 8 | 157 |
| 100 | 4” | 101 | 57 | 231 | 24 | 8 | 186 |
| 125 | 5” | 127 | 68 | 257 | 24 | 8 | 213 |
| 150 | 6” | 152 | 73 | 285 | 24 | 8 | 240 |
| 200 | 8” | 200 | 92 | 340 | 24 | 8 | 296 |
Reach out for tailored solutions. Our team is ready to assist. Submit an inquiry and experience excellence in valve automation solutions.
