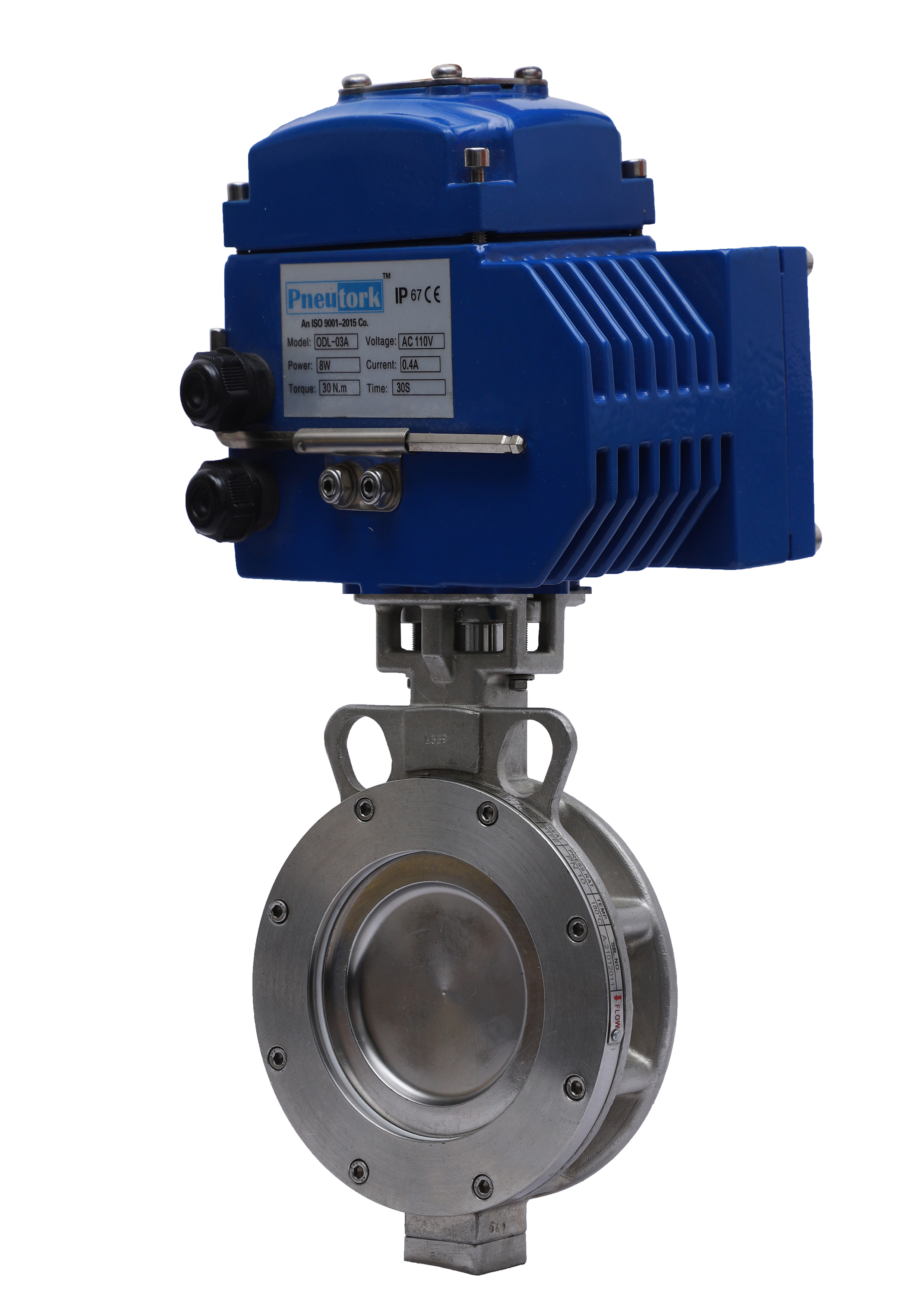

Pneutork offers motorized double offset disc valve for precise and strong durable upto 210ºC temperature and 10kg/cm2 / 20kg/cm Pressure
1.1/2” to 20” (40mm to 500mm)
Hygienic powder and slurries, especially in pharmaceutical industries
Chemical and dyeing fluids in textile processing
Brine and waters
Steam lines, Air, Gas Lines, Vaccum
| Compact Design | Full Port – Offers Mass Flow |
|---|---|
| Simple Structure | Light & Smooth, Takes Very short time for opening and closing with very low torque |
| Easy maintenance | Replaceable Seals Design |
| Self-Cleaning | Self-cleaning the undercut disc segment and seal tends to wipe away the material from the sealing area, |
| Gland Pressing plate | Ensure complete utilization of gland seals. |
| Item | Type of Test | Testing Pressure | Operating Temperature | |
|---|---|---|---|---|
| Normal | High | |||
| Valve Body | Hydraulic | 22 Kg/Cm² / 30 Kg/Cm² | Max. 300°C | High Temp. On Request |
| Seat | Hydraulic | 10 Kg/Cm² / 1 Kg/Cm² | Max. 180°C | High Temp. On Request |
| No. | Description | Material |
|---|---|---|
| 1 | Body | WCB / CFB / CF8M |
| 2 | Disc | CF8 / CF8M |
| 3 | Seat | PTFE / GFT / CFT |
| 4 | Retainer | M.S. / SS 304 / SS 316 |
| 5 | Shaft | SS 304 / SS 316 |
| 6 | Gland Packing | PTFE / NBR / Viton |
| 7 | Retainer Bolt | S.S. |
| 8 | Disc Pin | SS 304 / SS 316 |
| 9 | Shaft Bush | M.S. / SS 304 / SS 316 |
| 10 | Electrical Actuator | STD. |
| Valve Size | 150# | 300# | |||||
|---|---|---|---|---|---|---|---|
| MM | Inch | L | ØE | ØD | L | ØE | ØD |
| 40 | 1.1/2" | 42 | 38 | 82 | 42 | 38 | 88 |
| 50 | 2" | 45 | 50.8 | 95 | 45 | 50.8 | 101 |
| 66 | 2.1/2" | 48 | 60.6 | 108 | 48 | 60.6 | 108.5 |
| 80 | 3" | 48 | 72 | 127 | 48 | 72 | 127 |
| 100 | 4" | 54 | 100 | 159 | 54 | 100 | 159 |
| 125 | 5" | 57 | 123 | 186 | 59 | 123 | 187 |
| 150 | 6" | 57 | 143 | 217 | 59 | 143.2 | 219 |
| 200 | 8" | 64 | 192 | 270 | 64 | 192 | 270 |
| 250 | 10" | 71 | 239 | 322 | 87 | 239.2 | 340 |
| 300 | 12" | 81 | 290 | 382 | 92 | 290 | 394 |
| 350 | 14" | 92 | 335 | 436 | 117 | 335 | 436 |
| 400 | 16" | 102 | 387.5 | 495 | 123 | 387.5 | 500 |
| 450 | 18" | 114 | 425 | 540 | 149 | 425 | 540 |
| 500 | 20" | 127 | 475 | 595 | 159 | 475 | 595 |
