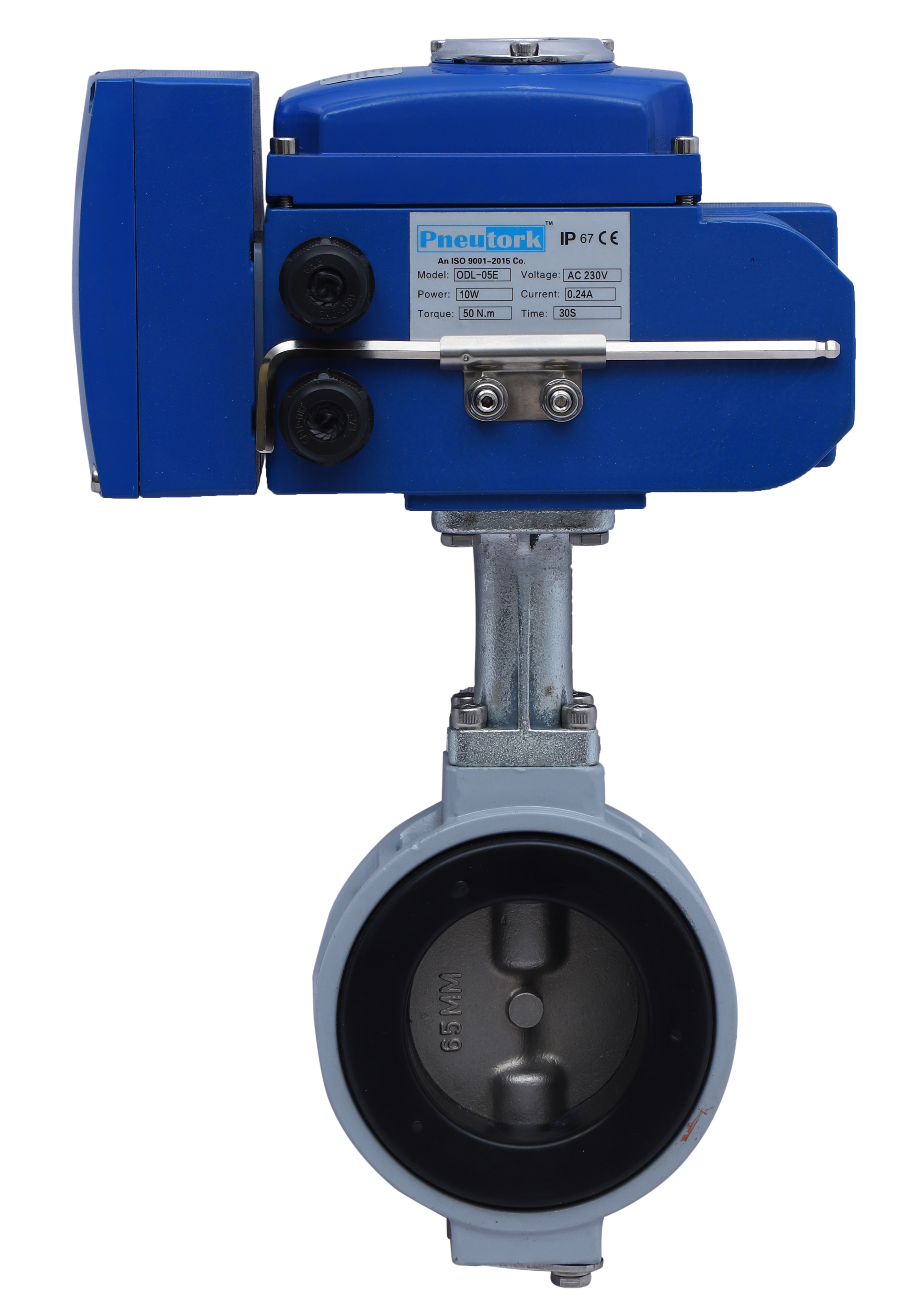

Pneutork make on/off, Modulating, Integral starter actuator operated Aluminium Body, S.S. 304 / S. S. 316 disc Kitz type butterfly valve.
| Valve Type | Wafer type |
|---|---|
| Body Type | Short Wafer Type (sandwiched between flanges) Damper |
| Seat Type | Soft seat |
| End Connection | Wafer Sandwiched |
| Pressure Rating | PN 10 / PN16 (Maximum) |
| Oper. Temp. Range | -20ºC to 180ºC |
| Seat Leakage | CLASS VI |
| Item | Type of Test | Testing Pressure | Working Pressure |
Operating Temperature
Normal |
Operating Temperature
High |
|---|---|---|---|---|---|
| Valve Body | Hydraulic | 300 PSIG | 225 PSIG FOR PN16 | Max.200ºC | N/A |
| Seat | Hydraulic | 225 PSIG | 225 PSIG FOR PN16 | Max.200ºC | MAX UPTO 180OC |
| No. | Description | Material |
|---|---|---|
| 1 | Body | Aluminium Pressure Die Cast |
| 2 | Disc | S. S. 304 / S. S. 316 |
| 3 | Stem | AISI 304 / AISI 316 |
| 4 | Shaft | AISI 304 / AISI 316 |
| 5 | Seat | EPDM/Silicon |
| 6 | Valve Rating | PN10 / PN16 |
| 7 | Pneumatic Actuator | Standard |
|
Valve Size
MM |
Inch | b | P2 | L | D |
|---|---|---|---|---|---|
| 40 | 1 1/2" | 40 | 60 | 33 | 78 |
| 50 | 2" | 50 | 66 | 43 | 93 |
| 65 | 2 1/2" | 65 | 74 | 46 | 118 |
| 80 | 3" | 80 | 83 | 46 | 129 |
| 100 | 4" | 100 | 94 | 52 | 149 |
| 125 | 5" | 125 | 122 | 56 | 184 |
| 150 | 6" | 150 | 135 | 56 | 214 |
| 200 | 8" | 196 | 161 | 60 | 259 |
