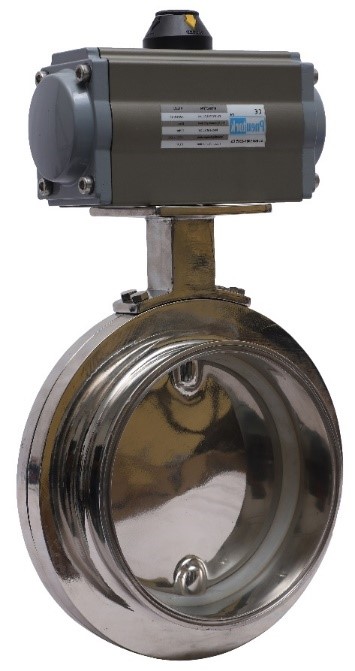

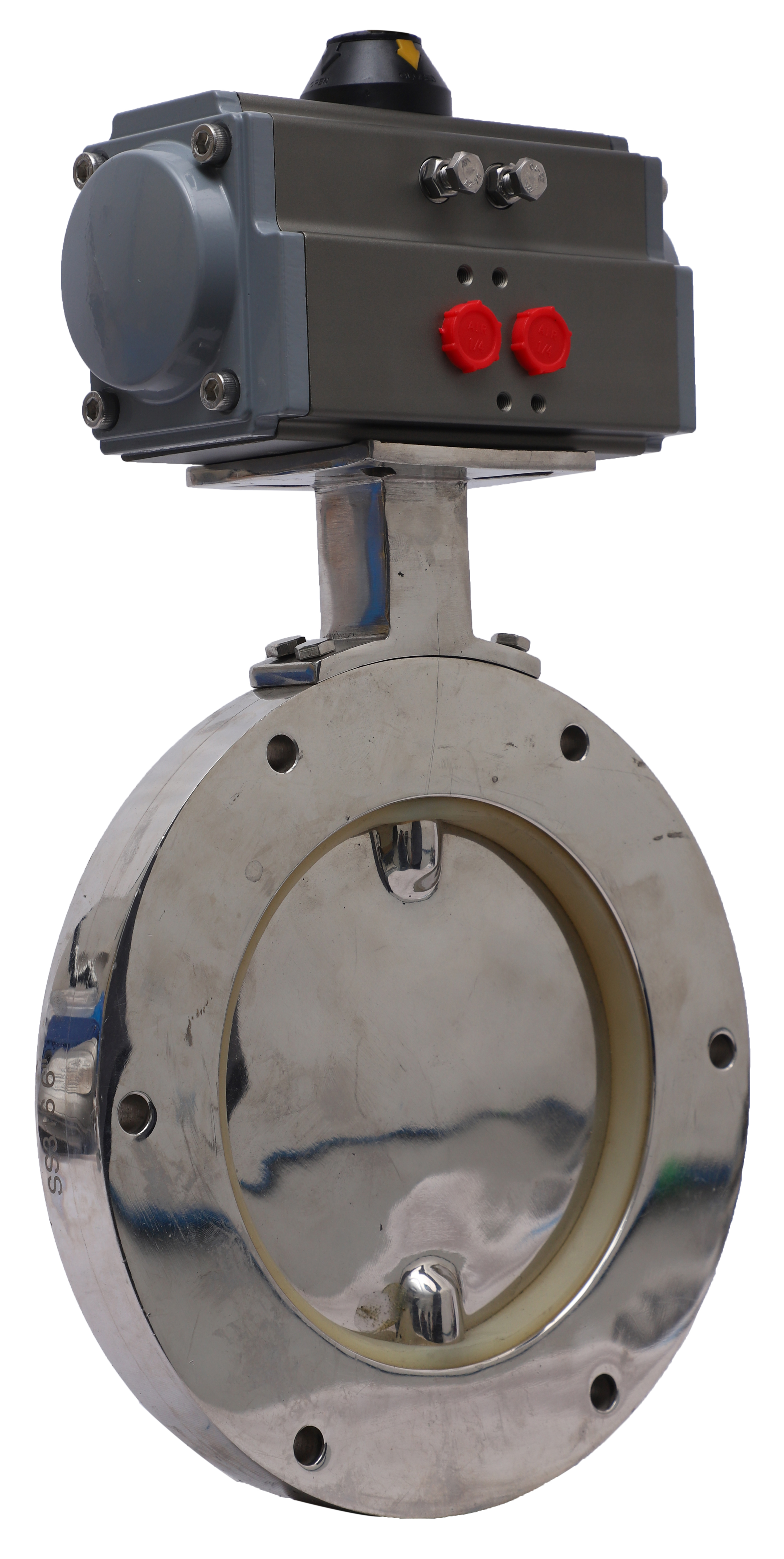

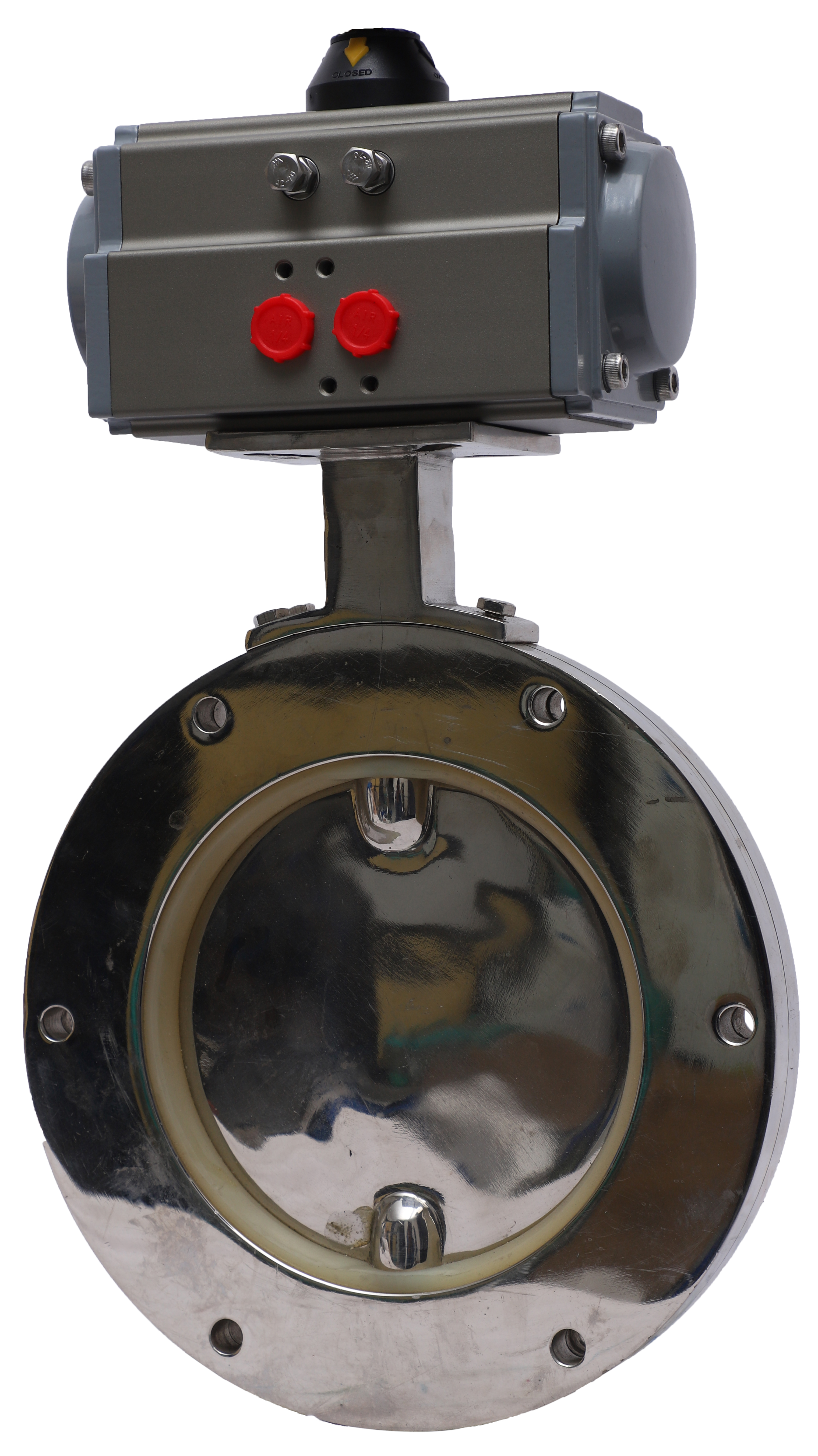

Pneumatic Actuator Operated Wafer Type / TC End Butterfly Valve For Pharma Application.

Pneutork offers ISO 5211 pneumatic rotary actuator operated BUTTERFLY VALVE FOR PHARMA APPLICATION.

  • Accessories :

    On/Off Actuator

    NAMUR Standard solenoid valve in all standard coil voltage

    (Flame proof solenoid coil on request)

    Pneumatic & Electro pneumatic valve positioner.

    Declutchable able Manual Over ride

    Limit Switch for on/off indication at panel board.

    Air filter + Regulator combination with pressure Gauge

    Air Lock Valve

Butterfly Valve Specification
Valve Type Wafer type
Body Type Short Wafer Type (sandwiched between flanges)
Seat Type Food grade silicon (others on request)
End Connection Wafer Sandwiched / Tc End
Pressure Rating PN 6 (Maximum)
Oper. Temp. Range -20ºC to 95ºC

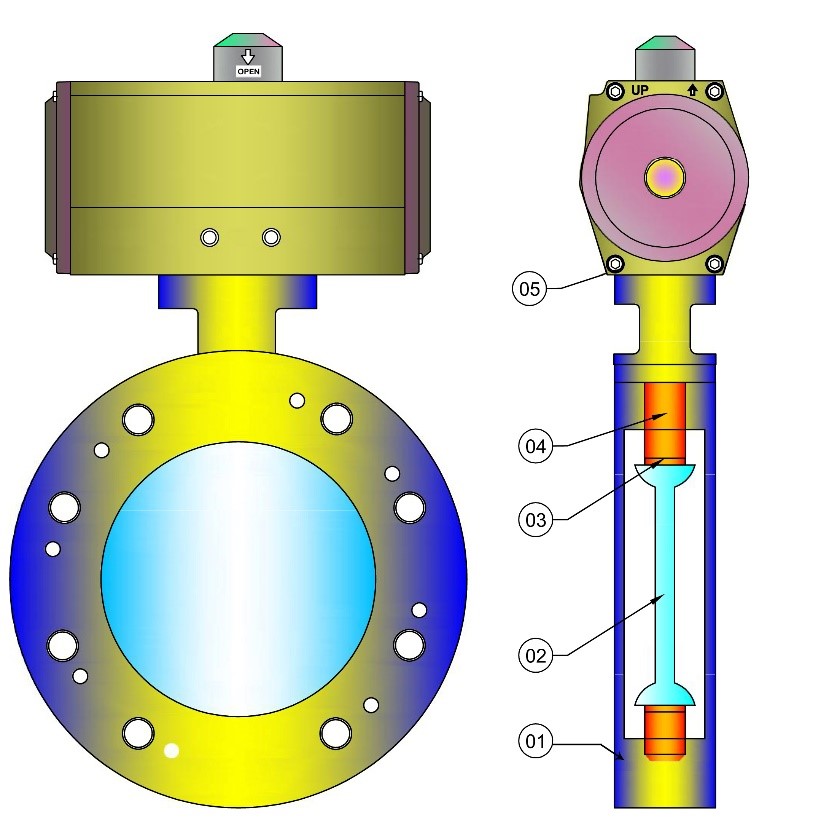

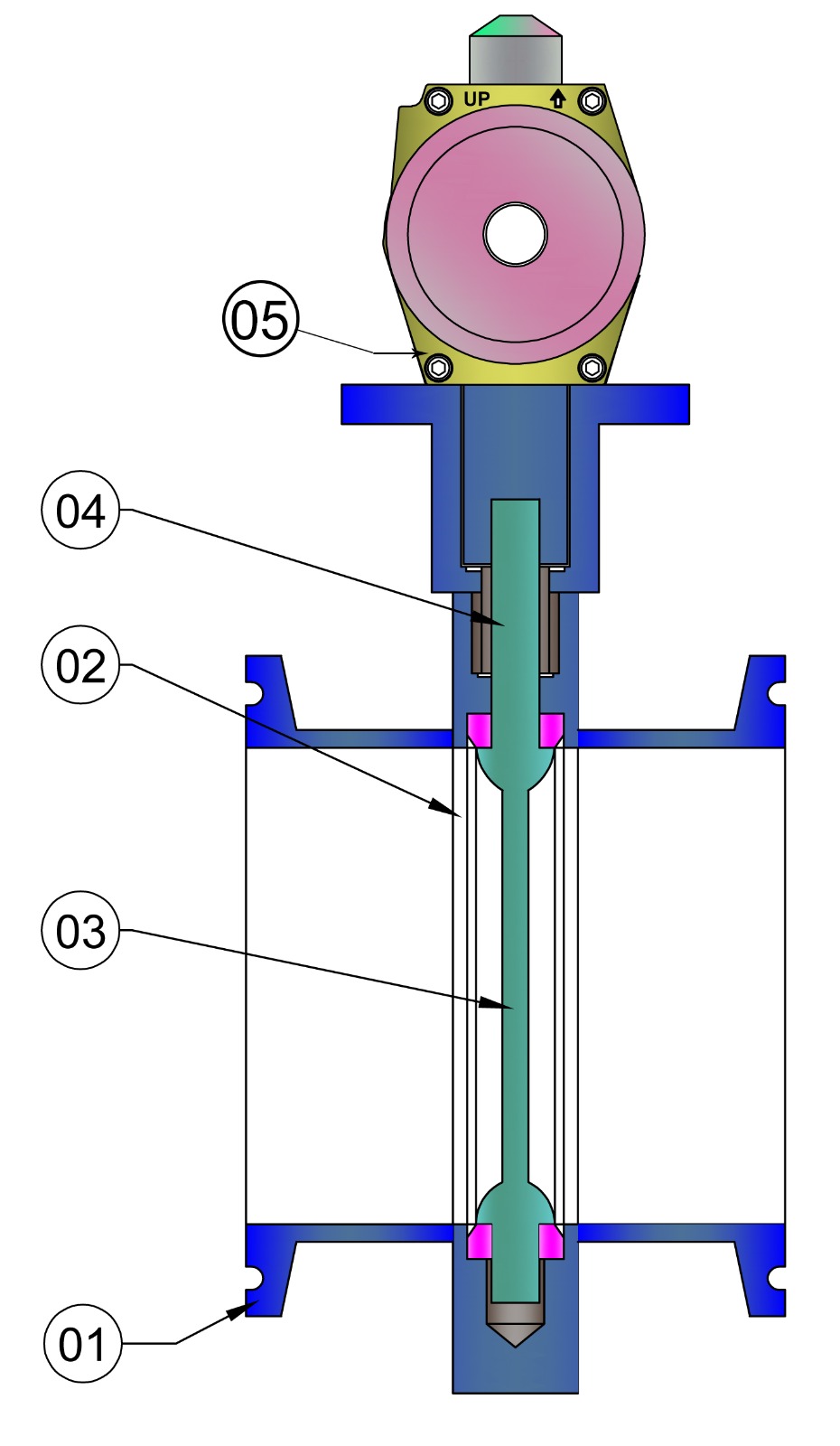

COMPONENTS MATERIAL
No. Description Material
1 Body SS 304 / SS 316 / SS 316L
2 Disc SS 304 / SS 316 / SS 316L
3 Seat Silicon
4 Shaft SS 304 / SS 316 / SS 316L
5 Pneumatic Actuator Standard

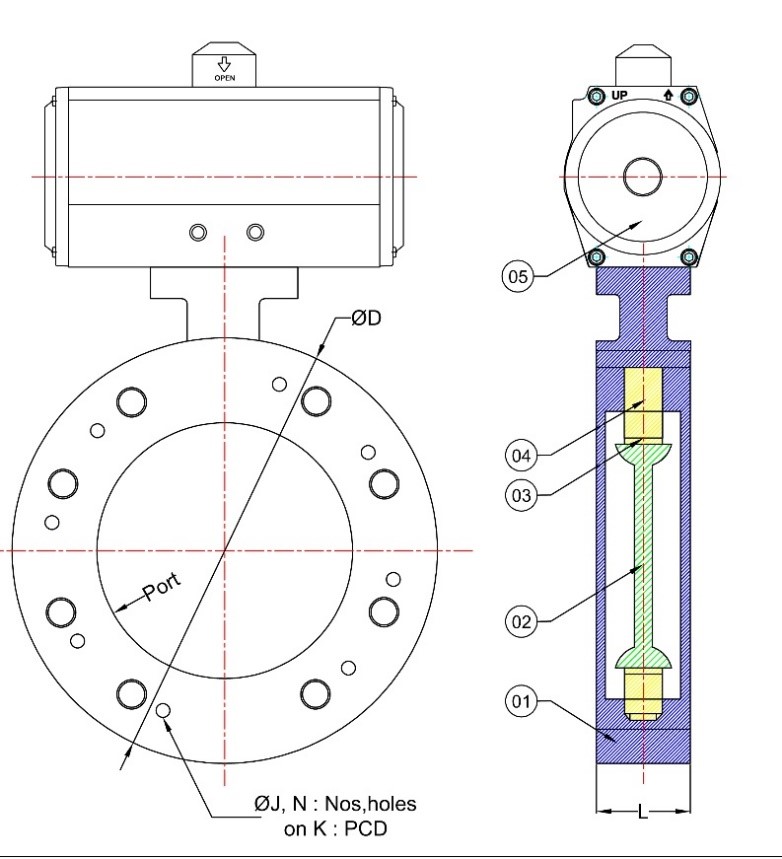

DIMENSION AND CONNECTION IN MM
MM Inch Dimension Of Wafer Type
Port
±1MM 		L
±3MM 		ØD
±5MM 		N ØJ
±5MM 		PCD

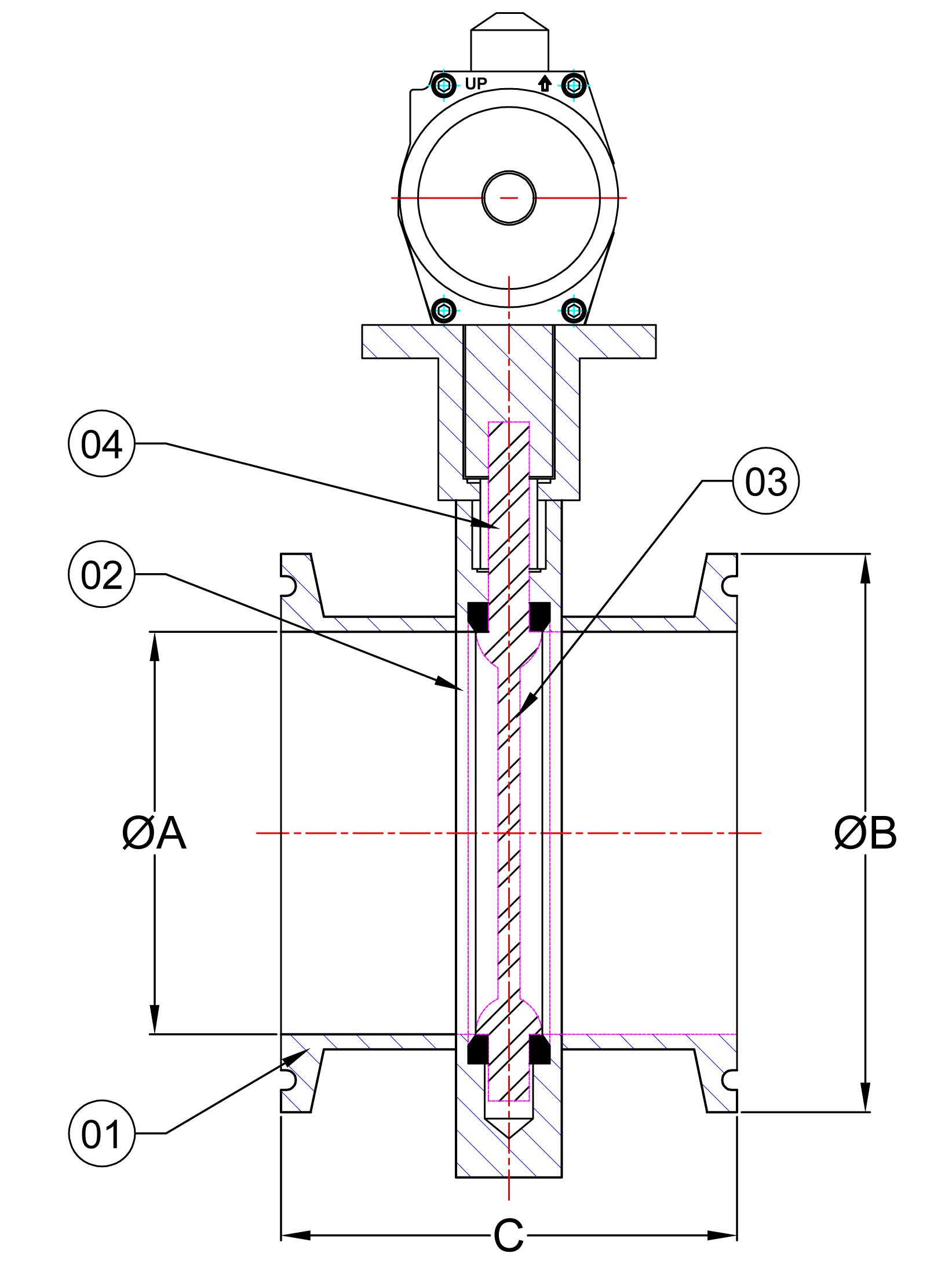

±1.5MM 		Dimension Of TC End
A 		B C
25 1” 25 24 85 4 6.35 65 22.1 50.5 60
40 1.1/2” 38 25 95 4 6.35 74 34.8 50.5 60
50 2” 50 26 118 4 7.9 97 47.5 64 60
65 2.1/2” 63 26 127 4 7.9 105 6.2 77.5 60
80 3” 76 26 144 4 7.9 128 72.2 91 74
100 4” 100 25 160 4 7.9 142 97.6 119 90
125 5” 127 25 200 6 9.5 175 148.4 167 85
150 6” 150 25 225 6 9.5 203 199.2 217 88
200 8” 200 28 285 6 9.5 264 250 268 90
250 10” 250 28 335 6 11 298 300 319 90
300 12” 300 30 385 8 14.5 360 - - -
350 14” 350 35 440 8 14.5 415 - - -
400 16” 400 35 490 10 17.5 460 - - -
450 18” 457 35 540 10 17.5 508 - - -
500 20” 500 35 600 12 17.5 565 - - -
