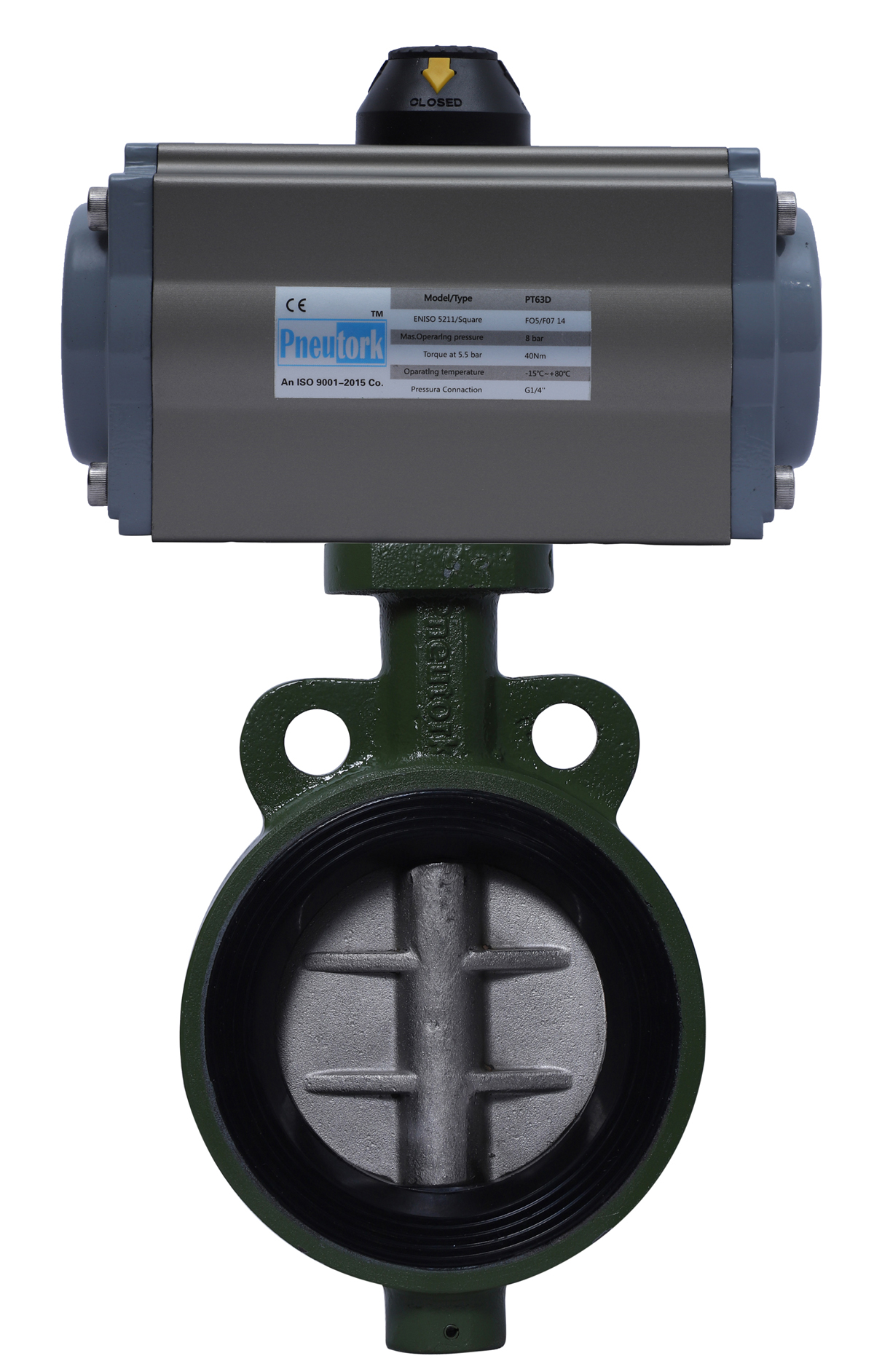

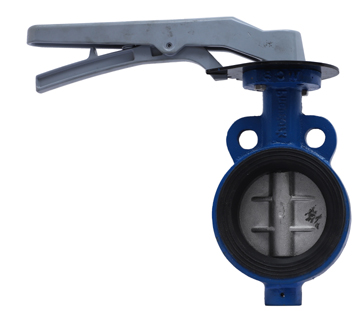

Pneutork offers rubber lined butterfly valve for HVAC & utilities. These valves are truly Fit & Forget Valve which requires minimum maintenance. The body line which also function as per soft seat, comes in integrally moulded version and offers bi-directional sealing against vacuum up to the pressure of PN 10 / PN 16
On/Off Actuator
NAMUR Standard solenoid valve in all standard coil voltage
(Flame proof solenoid coil on request)

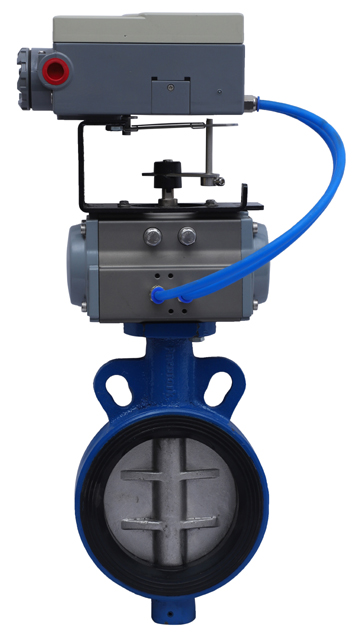

Pneumatic & Electro pneumatic valve positioner.
Declutchable Manual Over ride
Limit Switch for on/off indication at panel board.
Air filter + Regulator combination with pressure Gauge
Air Lock Valve
| Valve Type | Centric Disc Butterfly Valve with single Piece Rubber Lined Bod |
|---|---|
| Body Type | Short Wafer Type |
| Seat Type | Integrally moulded with The Body (Renewable seat on Request) |
| End Connection | Wafer type to Suit 150# / Table “D” / Table “E” & IS 6392 Table 11 (PN 10/PN 16) |
| Pressure Rating | PN10 / PN 16 (PN20 on request) |
| Oper. Temp. Range | -20ºC to 80ºC for nitrile seat (Depending on MOC) |
| Seat Leakage | -20ºC t 120ºC for EPDM seatTight Shut Off |
| Item | Type of Test | Testing Pressure |
Temperature Range
Seat |
Temperature |
|---|---|---|---|---|
| Actuator | Pneumatic Bubble Test | 180 PSI to 150 PS |
Nitrile
EPDM |
-13ºC to 100ºC
-13ºC to 120ºC |
| Valve body | Hydraulic | 225 PSIG | Silicon | -50ºC to 180ºC |
| Seat | Hydraulic | 150 PSIG | VITON | -5ºC to 200ºC |

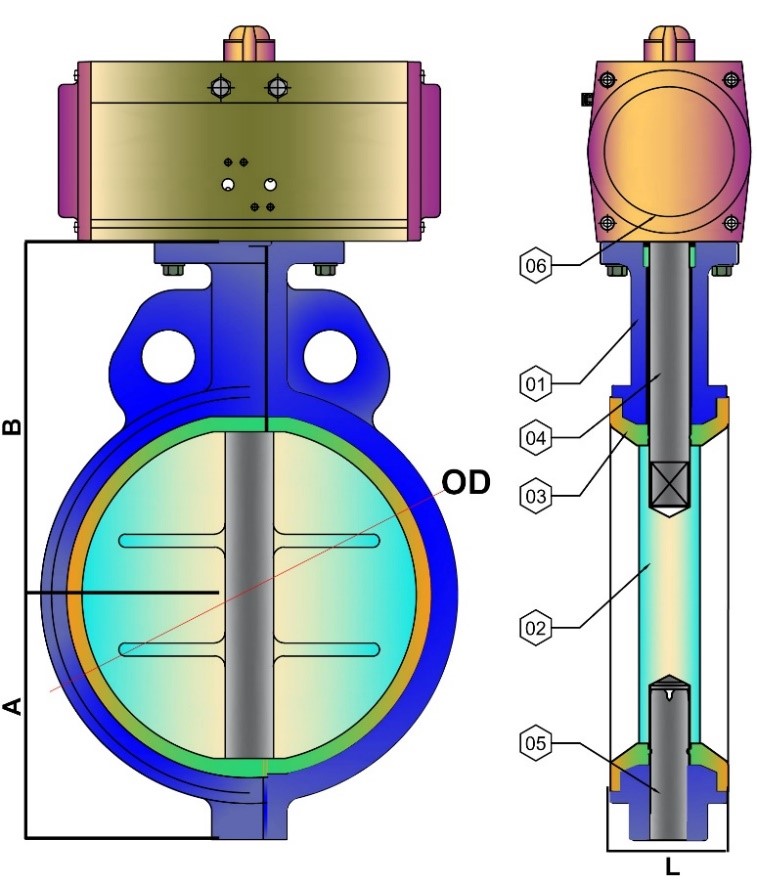

| No. | Description | Material | QTY |
|---|---|---|---|
| 1 | Body | Cast iron/ WCB / S. S. 304 / S. S. 316 | 01 |
| 2 | Disc | S. G. Iron / S. S. 304 / S. S. 316 | 01 |
| 3 | Moulded Seat | Nitrile / EPDM / Viton / Silicon | 01 |
| 4 | Shaft | AISI 410 / AISI 304 / AISI 316 | 01 |
| 5 | Bottom Pin | AISI 410 / AISI 304 / AISI 316 | 01 |
| 6 | Pneumatic Actuator | STD. | - |
|

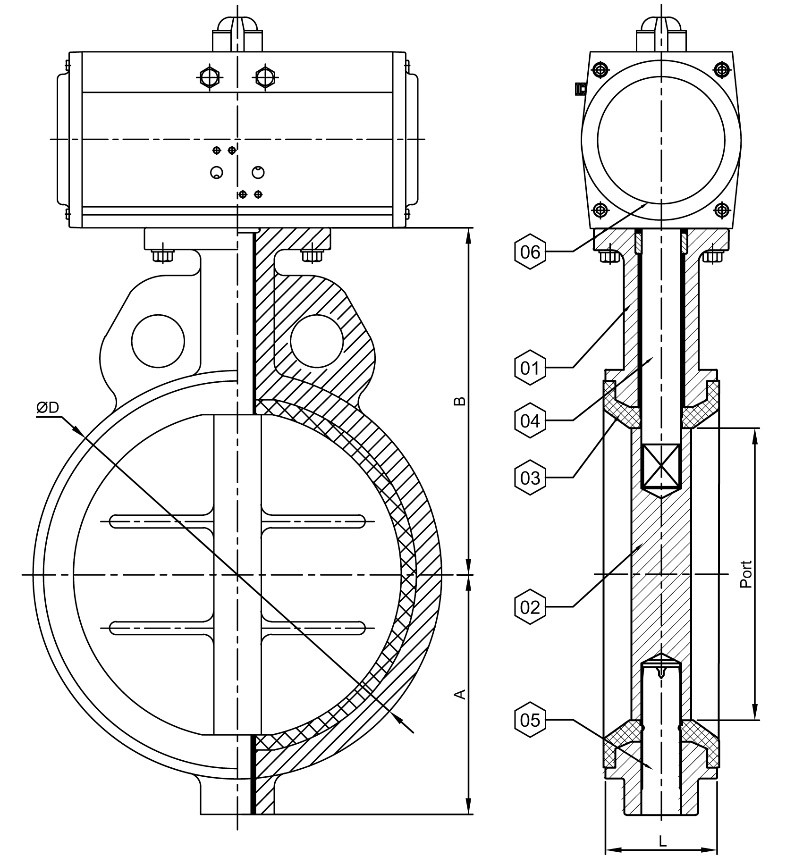

Valve Size
MM |
Inch | Port | L | ØD | A | B | PCDØ0.5MM | Tapped |
|---|---|---|---|---|---|---|---|---|
| 40 | 1.1/2" | 40 | 34 | 80 | 61 | 106 | - | - |
| 50 | 2" | 50 | 44 | 95 | 65 | 121 | - | - |
| 65 | 2.1/2" | 65 | 46 | 108 | 71 | 124 | - | - |
| 80 | 3" | 80 | 46 | 124 | 80 | 130 | - | - |
| 100 | 4" | 100 | 52 | 150 | 98.5 | 146.5 | - | - |
| 125 | 5" | 125 | 56 | 186 | 112.5 | 162 | - | - |
| 150 | 6” | 150 | 56 | 205 | 125 | 177 | - | - |
| 200 | 8" | 200 | 60 | 258.5 | 152.5 | 202 | - | - |
| 250 | 10" | 241 | 68 | 316 | 193 | 262 | - | - |
| 300 | 12" | 286 | 78 | 365 | 218 | 287 | - | - |
| 350 | 14" | 333 | 78 | 435 | 255 | 332 | - | - |
| 400 | 16" | 382 | 102 | 488 | 310 | 363 | - | - |
| 450 | 18" | 433 | 114 | 540 | 340 | 388 | 577.9 | 1” UNC |
| 500 | 20" | 476 | 127 | 600 | 370 | 425 | 635 | 1” UNC |
| 600 | 24" | 590 | 154 | 695 | 449 | 495 | 749.3 | 1.1/4” UNC |
| 650 | 26" | 635 | 165 | 740 | 455 | 490 | 806.4 | 1.1/4” UNC |
| 700 | 28" | 680 | 165 | 799 | 488 | 553 | 863.6 | 1.1/4” UNC |
