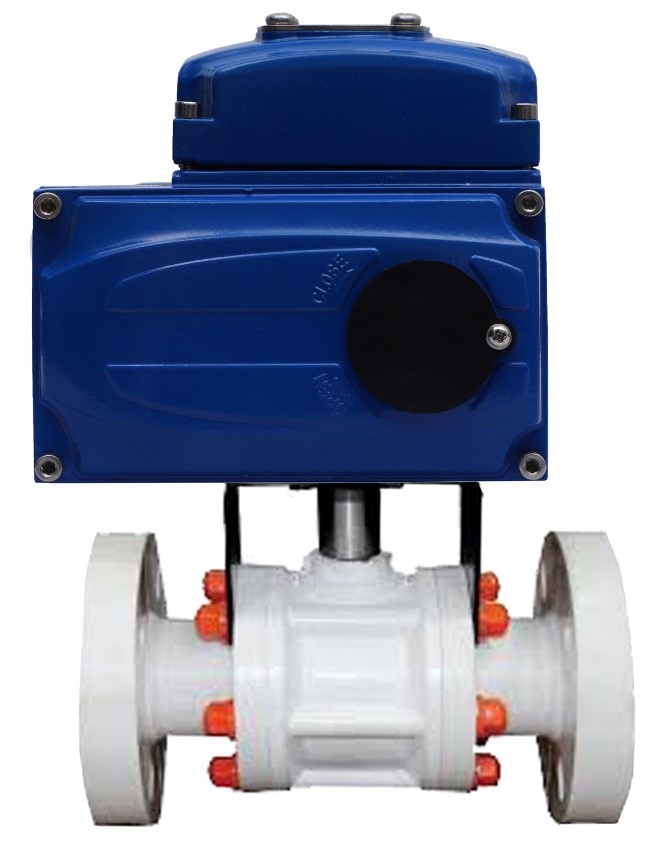

Electrical On/Off, Modulating, Integral starter Popypropylene 3 pcs design ball valve screwed end / flanged end for highly corrosive alklies and acidic media.
1/2” TO 3” SCREWED END
½” TO 12” FLANGED END
PVDF for Highly Acidic Media Available on Request.
| Body | 150 PSI |
|---|---|
| Seat | 150 PSI |
| Temperature | 100ºC |
| No. | Description | Material | QTY |
|---|---|---|---|
| 1 | Body | Polypropylene | 01 |
| 2 | End Connector | Polypropylene | 02 |
| 3 | Ball | Polypropylene | 01 |
| 4 | Ball Seat | PTFE | 02 |
| 5 | Stem Pin | S.S. 304 | 01 |
| 6 | Body Seat | PTFE | 02 |
| 7 | Adaptor | M.S./S.S. 304 | 01 |
| 8 | Stem O Ring | NBR | 01 |
| 9 | Clamp | M.S./S.S. 304 | 01 |
| 10 | Bolt/Nut | S.S. 304 | 04 |
| 11 | Electrical Actuator | STD. | 01 |
| Valve Size | Screwed | Flanged | ||||||
|---|---|---|---|---|---|---|---|---|
| MM | Inch | A | L | b | ØD | ØJ | N | k:PCD |
| 15 | 1/2" | 127 | 130 | 16.5 | 96 | 15.9 | 4 | 60.3 |
| 20 | 3/4" | 139 | 132 | 14.5 | 102 | 15.9 | 4 | 69.9 |
| 25 | 1" | 150 | 152 | 18.5 | 121 | 15.9 | 4 | 79.4 |
| 32 | 1.1/4" | 172 | 162 | 18 | 124 | 15.9 | 4 | 88.9 |
| 40 | 1.1/2" | 172 | 170 | 18.5 | 140 | 15.9 | 4 | 98.4 |
| 50 | 2" | 209 | 209 | 22.5 | 165 | 19.05 | 4 | 120.7 |
| 65 | 2.1/2" | 248 | 230 | 22.5 | 184 | 19.05 | 4 | 139.7 |
| 80 | 3" | 250 | 254 | 24 | 203 | 19.05 | 4 | 152.4 |
| 100 | 4" | N/A | 310 | 27 | 229 | 19.05 | 8 | 190.5 |
| 150 | 6" | N/A | 477 | 28 | 305 | 22.5 | 8 | 241.3 |
| 200 | 8" | N/A | 477 | 30 | 368 | 22.5 | 8 | 298.5 |
| 250 | 10" | N/A | 560 | 31 | 432 | 25.4 | 12 | 362 |
| 300 | 12" | N/A | 560 | 31 | 489 | 25.4 | 12 | 431.8 |
Reach out for tailored solutions. Our team is ready to assist. Submit an inquiry and experience excellence in valve automation solutions.
