Pneutork offers ISO 5211 Standard pneumatic rotary actuator operated UPVC butterfly valve now come with an update design that offers angle switching control. Increased neck height makes it easier to install. Sealing surface and through hole are processed on CNC machines for reliable and enhanced sealing performance.
Improve PP Disc to enhance the performance
Thickness body and seal to extend the service life.
Materials meet drinking water standard
100% pure virgin material, CaCO3 free (chalk).
UV resistant powder added.
Can be assembled with pneumatic actuator.
On/Off Actuator
NAMUR Standard solenoid valve in all standard coil voltage
(Flame proof solenoid coil on request)
Pneumatic & Electro pneumatic valve positioner.
Declutchable able Manual Over ride
Limit Switch for on/off indication at panel board.
Air filter + Regulator combination with pressure Gauge
Air Lock Valve
| Body | UPVC |
|---|---|
| Disc | Polypropylene |
| Pressure | 7kg/cm2 |
| Temperature | Upto 80°C |
| End | Wafer type |
| Item | Type of Test | Testing Pressure |
Operating Temperature
Normal |
|---|---|---|---|
| Actuator | Pneumatic Bubble Test | 180 PSI to 150 PS | -20ºC TO 80ºC |
| Valve body | Hydraulic | 150 PSIG | Max. 80ºC |
| Seat | Hydraulic | 100 PSIG | Max. 80ºC |

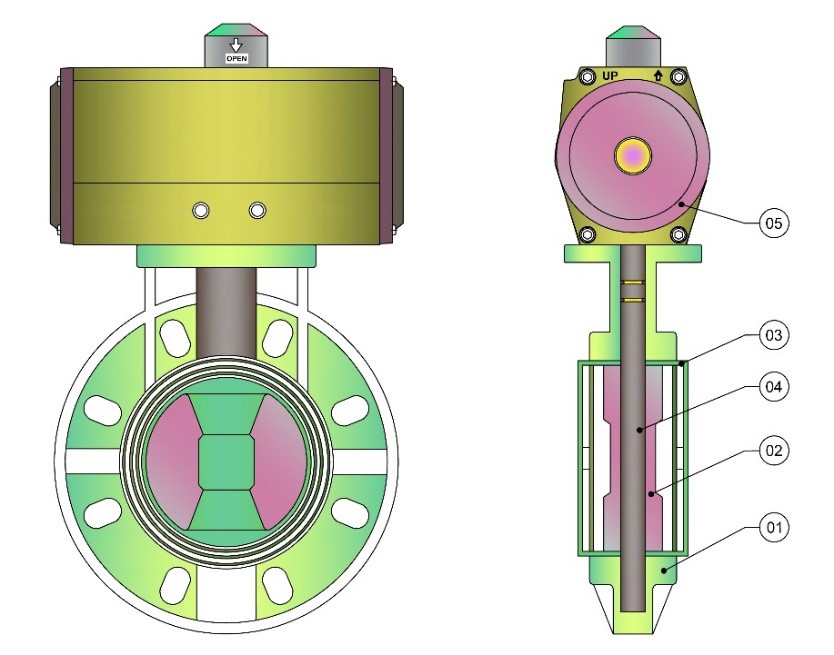

| No. | Description | Material | QTY. |
|---|---|---|---|
| 1 | Body | UPVC | 01 |
| 2 | Disc | Polypropylene | 01 |
| 3 | Shaft | AISI 410 | 01 |
| 4 | Seat | NBR | 01 |
| 5 | Pneumatic Actuator | Standard | 01 |
|
Valve Size
MM |
Inch | Port | L | ØD | ØJ | N | PCD |
|---|---|---|---|---|---|---|---|
| 50 | 2” | 54 | 44.5 | 160 | 20 | 4 | 123 |
| 65 | 2.1/2” | 67 | 48 | 184 | 21 | 4 | 143 |
| 80 | 3” | 83 | 53 | 198 | 21 | 8 | 157 |
| 100 | 4” | 101 | 57 | 231 | 24 | 8 | 186 |
| 125 | 5” | 127 | 68 | 257 | 24 | 8 | 213 |
| 150 | 6” | 152 | 73 | 285 | 24 | 8 | 240 |
| 200 | 8” | 200 | 92 | 340 | 24 | 8 | 296 |
Reach out for tailored solutions. Our team is ready to assist. Submit an inquiry and experience excellence in valve automation solutions.
