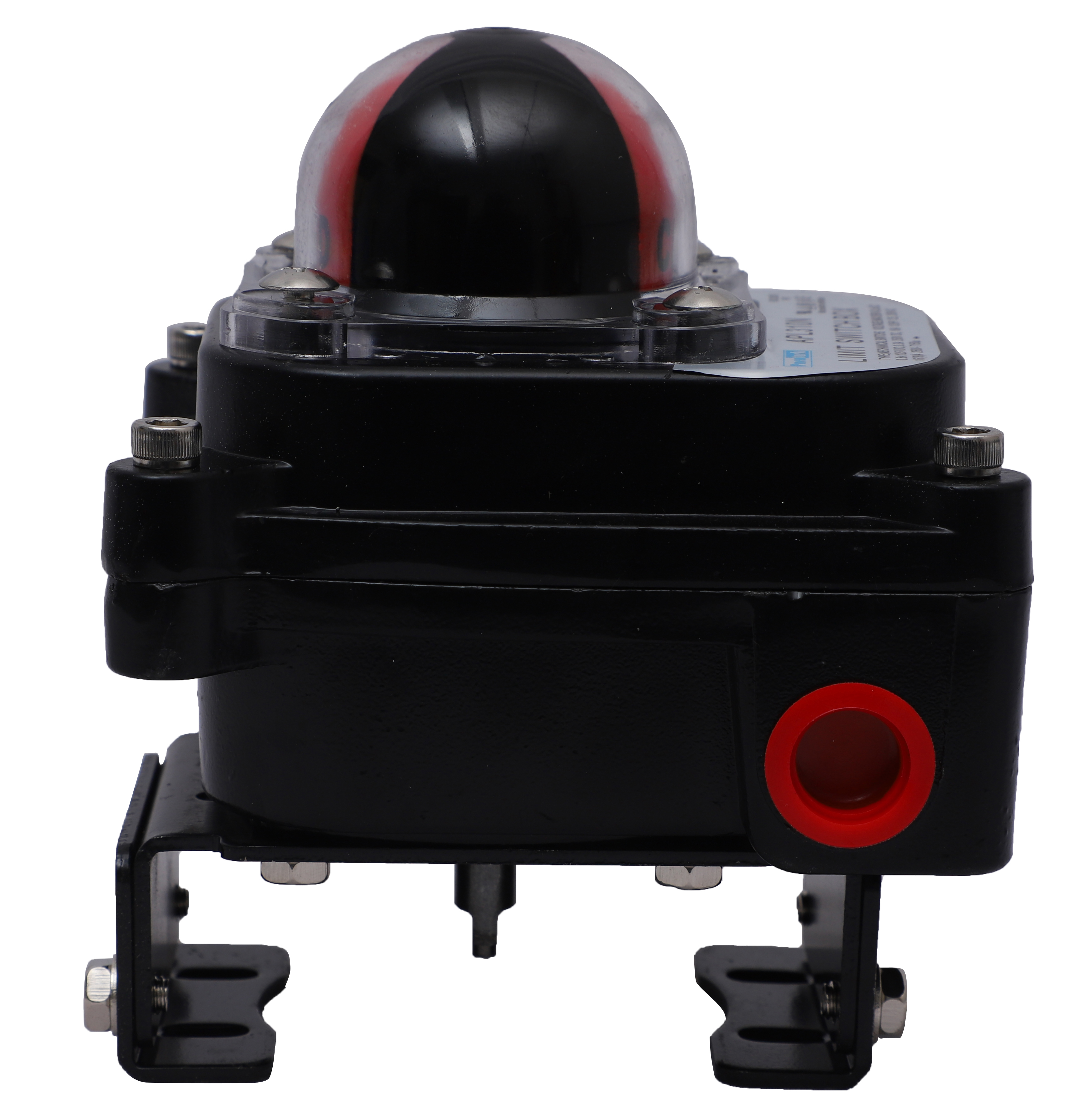

Specification:

• Standard - APL 3N:




  Enclosure: Weather Proof IP 67 / NEMA 4X4 X

  Cable Entries: Two NPT 1/2"

  Ambient Temperature: -20°C to 80°C

  Terminal Strips: 8 points (0.08-2.5m)

  Position Indicator: 0 ~ 90 (90 turn free join) , Close : Red, Open : Yellow

  Switches: Mechanical Switch X 2 , Proxmity Sensor X 2

  Painting: Chrome Polyester powder coating (Black)

• Optional - APL 3N:




  Enclosure: Weather Proof IP 68

  Cable Entries: Two PF 1/2 PT 1/2 M20, PG13.5

  Ambient Temperature: -40°C to 80°C , -20°C to 15°C

  Terminal Strips: 16 points (0.08-2.5m)

  Position Indicator: Three position L port / T port , Close : Red, Open : Green

  Switches: Mechanical Switch X 4 , Proxmity Sensor X 4

  Potentometer: 1k ohm standard , 5k ohm 0-10k ohm

  Current Output Signal: 4-20mA DC , 12.5 to 37VDC (24C typical)

  Painting: Nylon others on request Red, green, blue, yellow, silver

• Dimensions:
