Specification:

• Standard - ITS 100




  Enclosure: Weather Proof IP 67 O ring sealed

  Cable Entries: 2 PT 1/2" standard threads

  Ambient Temperature: -20OC to 80OC

  Terminal Strips: 8 points (0.08-2.5m)

  Position Indicator: 0 ~ 90 (90 turn free join) , Close : Red, Open : Yellow

  Switches: Proxmity Sensor X 2

  Painting: Chrome Polyester powder coating (Black)

• Optional - ITS 100




  Enclosure: Weather Proof IP 68

  Cable Entries: FOUR PF 3/4 PT 3/4 M20,M25

  Ambient Temperature: -40OC to 100OC

  Position Indicator: Three position L port / T port , Close : Red, Open : Green

  Potentometer: 1k ohm standard, 5k ohm. 0-10k ohm

  Current Output Signal: 4-20mA DC 12.5 to 37VDC ( 24V typical)

  Painting: Nylon others on request Red, green, blue, yellow, silver

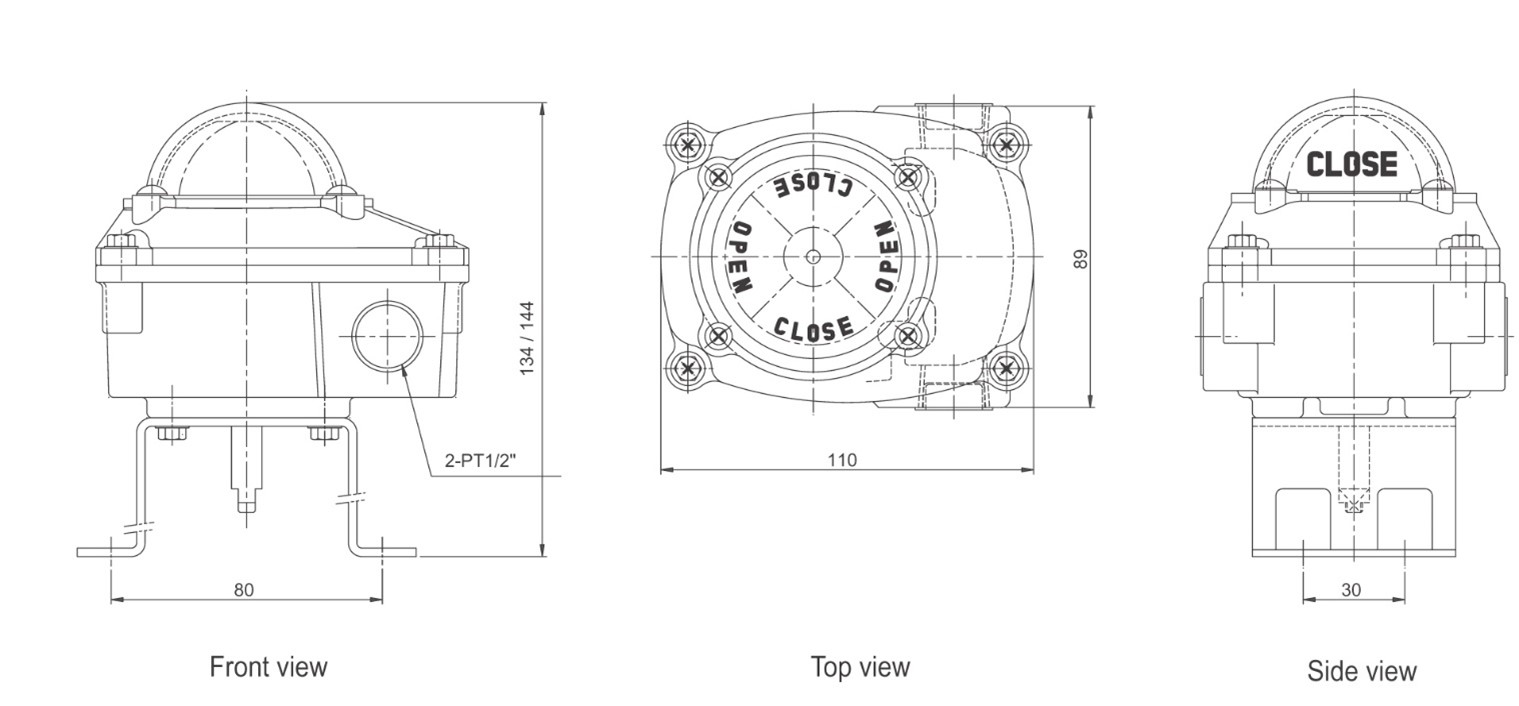

• Dimensions:
