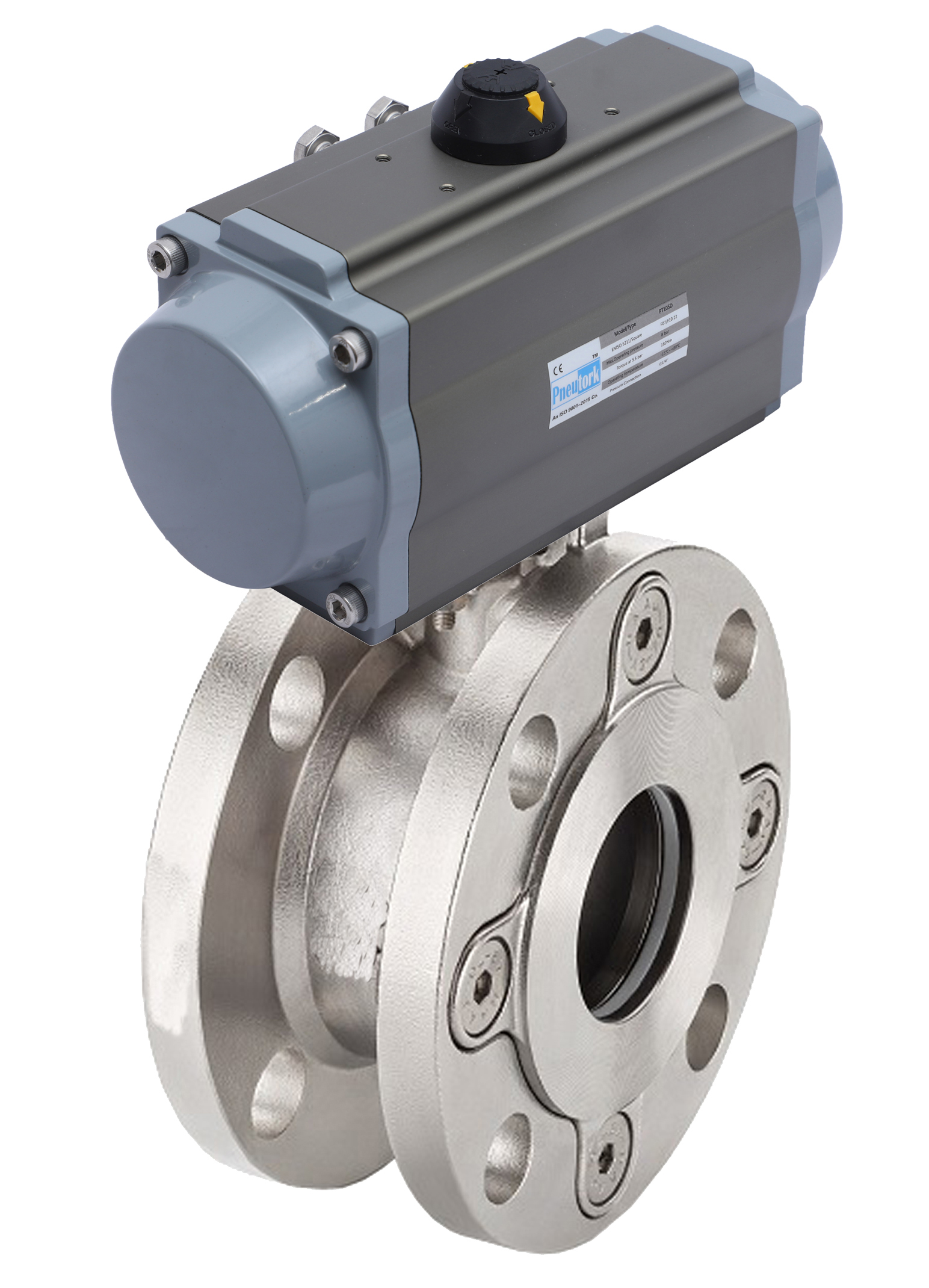

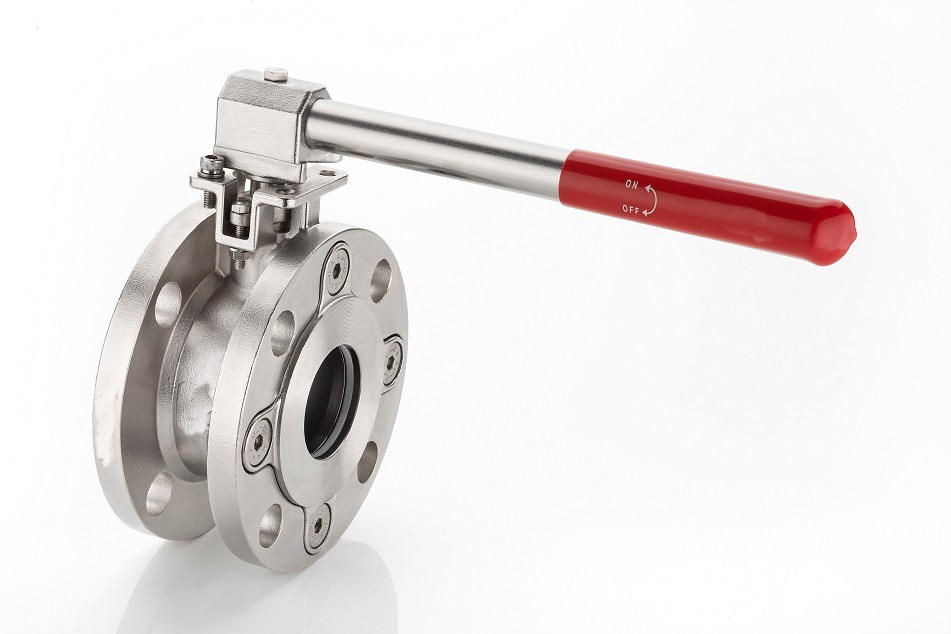

Pneutork offers ISO 5211 standard pneumatic rotary actuator operated investment casting WCB/CF8/CF8M wafer type ball valve
On/Off Actuator
NAMUR Standard solenoid valve all standard coil voltage
(Flame proof solenoid coil on request)
Pneumatic & Electro pneumatic valve positioner.
Declutchable Manual Over ride
Limit Switch for on/off indication at panel board.
Air filter + Regulator combination with pressure Gauge
Air Lock Valve
| Working Pressure | 10 Bar |
|---|---|
| Working Temperature | Upto 180°C Max. |
| Valve Rating | 150# |
| Leakage Class | Class VI |
| Design and Manufacturing : | IS / ISO 17292 |
|---|---|
| Valve Face to Face Dimension : | As per Manufacturers Std. |
| Flange standard Conformity : | ASME B16.5 Class 150 |
| Inspection & Testing : | API 598 / IS / ISO 17292 |
| No. | Description | Material |
|---|---|---|
| 1 | Body | WCB/CF8/CF8M |
| 2 | Connector | WCB/CF8/CF8M |
| 3 | Ball | CF8/CF8M |
| 4 | Ball Seal | PTFE / GFT / CFT |
| 5 | Ball Seat | PTFE / GFT / CFT |
| 6 | Stem Pin | S. S. 304 |
| 7 | Stem Seat | AISI 304 |
| 8 | Gland with Bush | PTFE / GFT / CFT |
| 9 | Gland Fitting Bolt | S. S. |
| 10 | Allen Bolt | S. S. |
| 11 | Bracket | S. S. |
| 12 | Bracket Fitting Bolt & Washer | S. S |
| 13 | Actuator | STD. |
|
Valve Size
MM |
Inch | L | b | f | Port | Øg | ØD | ØJ | N | PCD |
|---|---|---|---|---|---|---|---|---|---|---|
| 25 | 1" | 54 | 9.6 | 2 | 25 | 50.8 | 110 | 15.88 | 4 | 79.4 |
| 32 | 1.1/4" | 58.5 | 11.2 | 2 | 32 | 63.50 | 115 | 15.88 | 4 | 88.9 |
| 40 | 1.1/2" | 63 | 12.7 | 2 | 38 | 73 | 127 | 15.88 | 4 | 98.4 |
| 50 | 2" | 73 | 14.3 | 2 | 49 | 92.1 | 152 | 19.05 | 4 | 120.7 |
| 65 | 2.1/2” | 96 | 15.9 | 2 | 62 | 104.65 | 177.8 | 19.05 | 4 | 139.7 |
| 80 | 3" | 118 | 17.5 | 2 | 74 | 127 | 190 | 19.05 | 4 | 152.4 |
| 100 | 4" | 140 | 22.3 | 2 | 100 | 157.2 | 230 | 19.05 | 4 | 190.5 |
