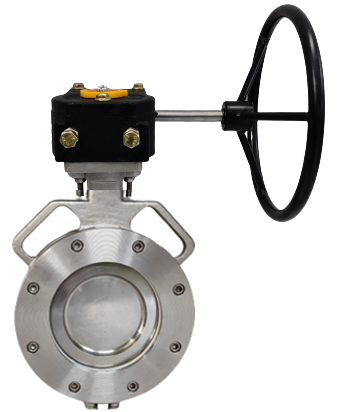

Pneutork offers precise and strong durable upto 210ºC temperature and 10kg/cm² / 20kg/cm² Pressure
Hygienic powder and slurries, especially in pharmaceutical industries
Chemical and dyeing fluids in textile processing
Brines and waters
Steam lines, Air, Gas Lines, Vaccum
On/Off Actuator
NAMUR Standard solenoid valve in all standard coil voltage
(Flame proof solenoid coil on request)
Pneumatic & Electro pneumatic valve positioner.
Declutchable Manual Over ride
Limit Switch for on/off indication at panel board.
Air filter + Regulator combination with pressure Gauge
Air Lock Valve

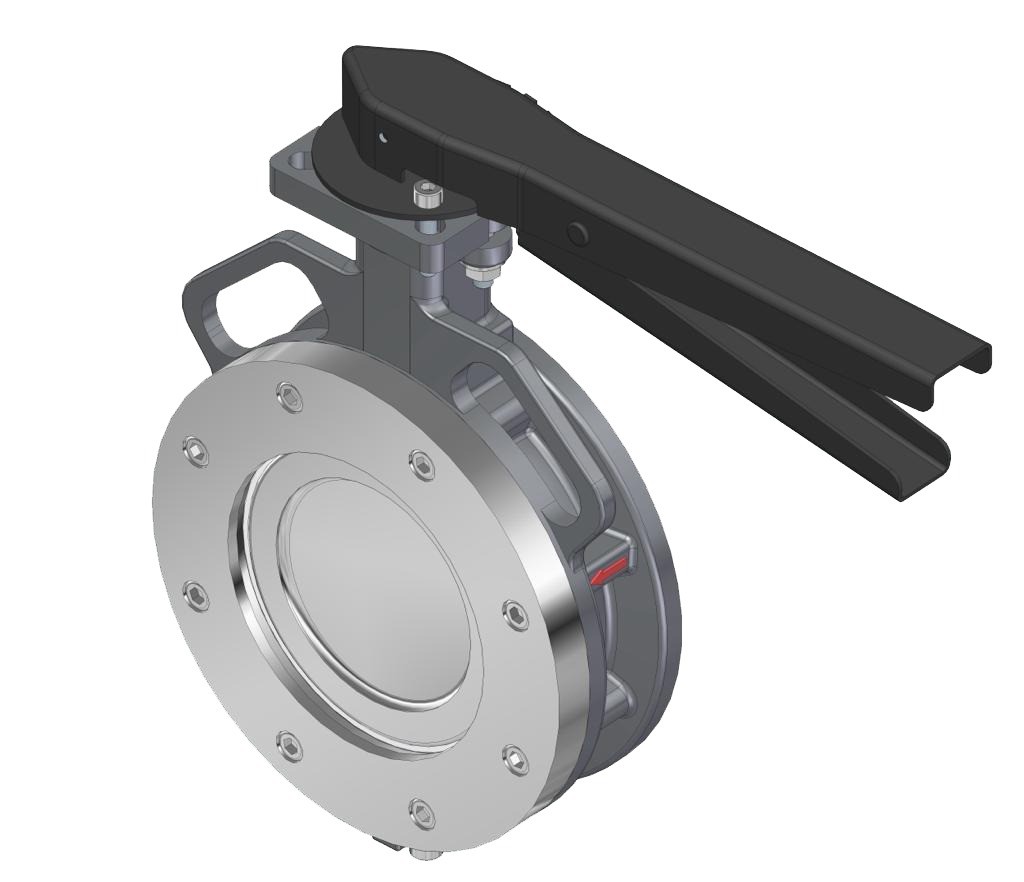

| Compact Design | Full Port – Offers Mass Flow |
|---|---|
| Simple Structure | Light & Smooth, Takes Very short time for opening and closing with very low torque |
| Easy maintenance | Replaceable Seals Design |
| Self-Cleaning | Self-cleaning the undercut disc segment and seal tends to wipe away the material from the sealing area |
| Gland Pressing plate | Ensure complete utilization of gland seals. |
| Item | Type of Test | Testing Pressure |
Operating Temperature
Normal |
High |
|---|---|---|---|---|
| Actuator | Pneumatic Bubble Test | 180 PSI to 150 PS | 20ºC TO 80ºC | High. Temp. On Request |
| Valve body | Hydraulic | 22 Kg/Cm / 30kg/Cm | Max. 300ºC | High. Temp. On Request |
| Seat | Hydraulic | 10 Kg/Cm / 1 Kg/Cm | Max. 210ºC | High. Temp. On Request |

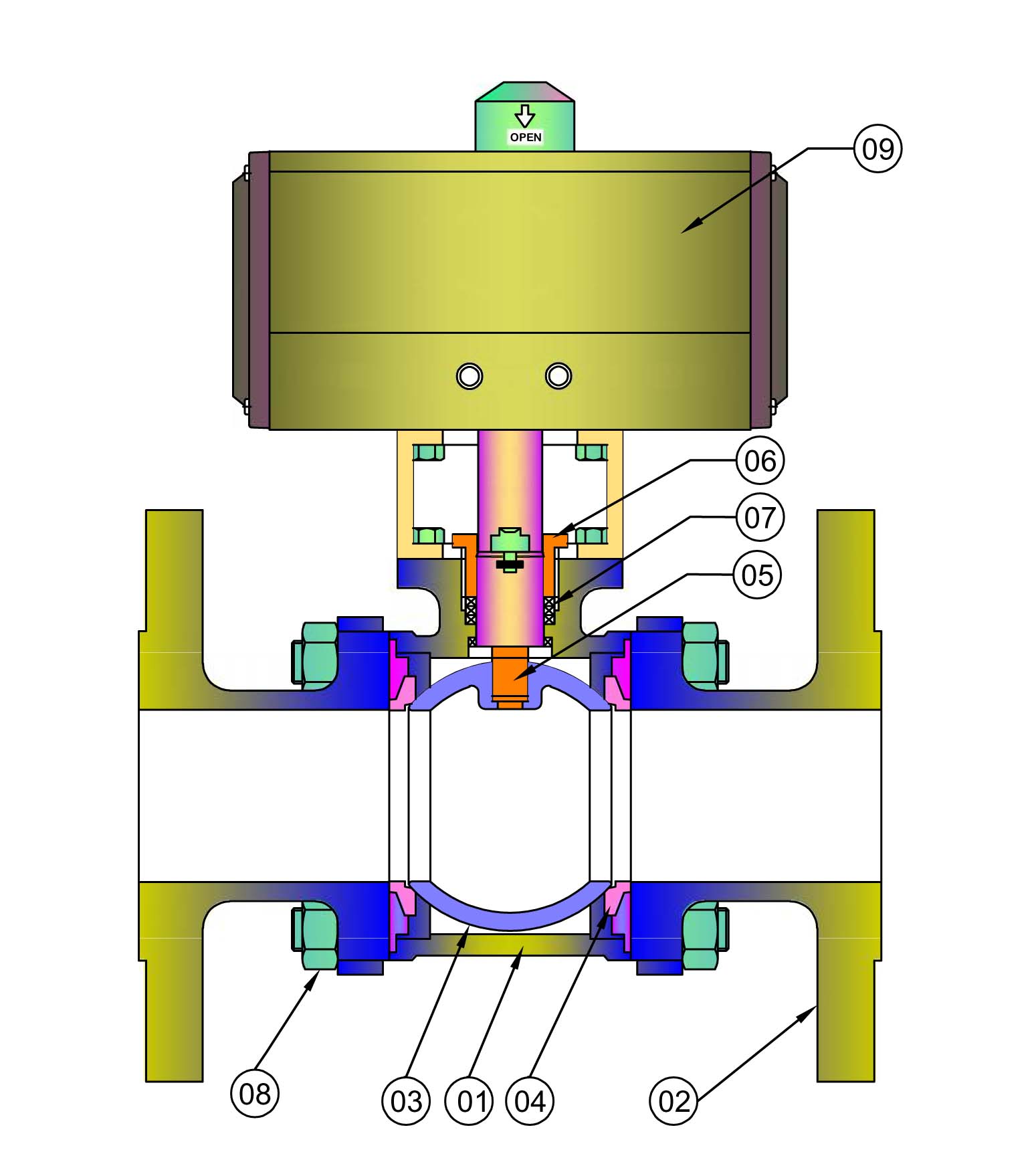

| No. | Description | Material |
|---|---|---|
| 1 | Body | WCB / CF8 / CF8M |
| 2 | Disc | CF8 / CF8M |
| 3 | Seat | PTFE / GFT / CFT |
| 4 | Shaft | M.S. / SS 304 / SS 316 |
| 5 | Gland Packing | S.S.304 / S.S. 316 |
| 6 | Retainer Bolt | PTFE / NBR / Viton |
| 7 | Disc Pin | S. S. |
| 8 | Shaft Bush | S. S. 304 / S. S.316 |
| 9 | Stem Plate | M. S. / S. S. 304 / S. S. 316 |
| 10 | Actuator | M. S. / S. S. 304 / S. S. 316 |
| 11 | Retainer | STD. |
|
Valve Size
MM |
Inch |
150#
L |
C | ØE | ØD |
300#
L |
ØE | ØD |
|---|---|---|---|---|---|---|---|---|
| 40 | 1.1/2" | 42 | 57 | 38 | 82 | 42 | 38 | 88 |
| 50 | 2" | 45 | 68.5 | 50.8 | 95 | 45 | 50.8 | 101 |
| 65 | 2.1/2" | 48" | 74.5 | 60.6 | 108 | 48 | 60.6 | 108.5 |
| 80 | 3" | 48 | 80 | 72 | 127 | 48 | 60.6 | 108.5 |
| 100 | 4" | 54 | 96 | 100 | 159 | 54 | 100 | 159 |
| 125 | 5" | 57 | 117 | 123 | 186 | 59 | 123 | 187 |
| 150 | 6” | 57 | 132 | 143 | 217 | 59 | 143.2 | 219 |
| 200 | 8" | 64 | 157 | 192 | 270 | 64 | 192 | 270 |
| 250 | 10" | 71 | 187 | 239 | 322 | 87 | 239.2 | 340 |
| 300 | 12" | 81 | 218 | 290 | 382 | 92 | 290 | 394 |
| 350 | 14" | 92 | 242 | 335 | 436 | 117 | 335 | 436 |
| 400 | 16" | 102 | 270.5 | 387.5 | 495 | 123 | 387.5 | 500 |
| 450 | 18" | 114 | 362 | 425 | 540 | 149 | 425 | 540 |
| 500 | 20" | 127 | 400 | 475 | 595 | 159 | 475 | 595 |
