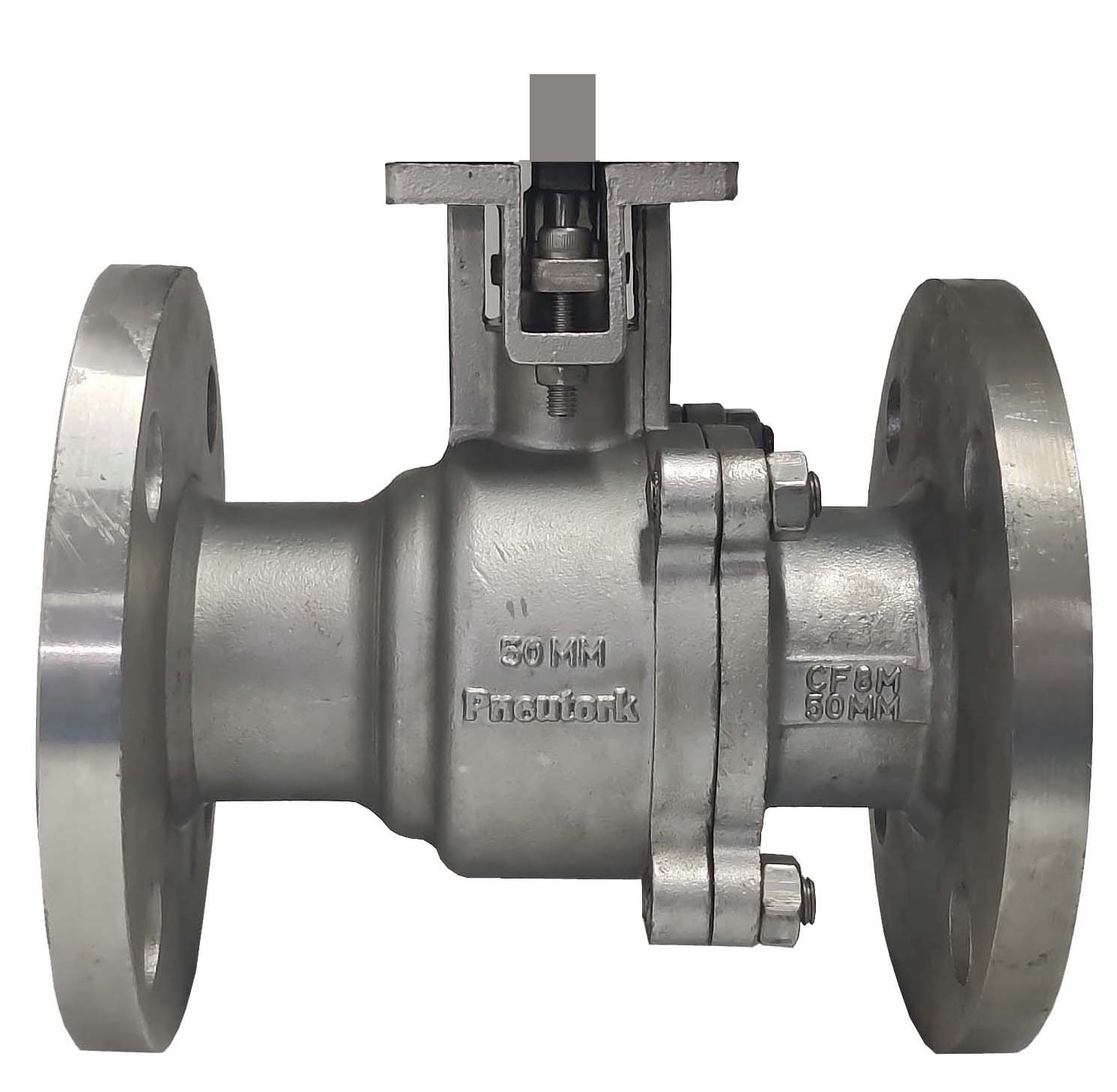

Pneutork make electrical on/off, modulating, integral starter operated 2 pcs design WCB/CF8/CF8M ball valve.
½” to 8” (15MM TO 200MM)
| Design and Manufacturers | ASME B 16.34 |
|---|---|
| Valve Face to Face Dimension | ASME B 16.10 |
| Flange standard Conformity | ASME B 16.5 Class 150#, 300# |
| Inspection& Testing | API 598 |
| Item | Type of test | Testing Pressure | Working Pressure | Operating Temperature High. Temp. On Request |
|---|---|---|---|---|
| Valve body Flanged 150# | Hydraulic | 450 PSIG | 315 PSIG | MAX. 180°C |
| Valve body Flanged 300# | Hydraulic | 1125 PSIG | 815 PSIG | Max. 180°C |

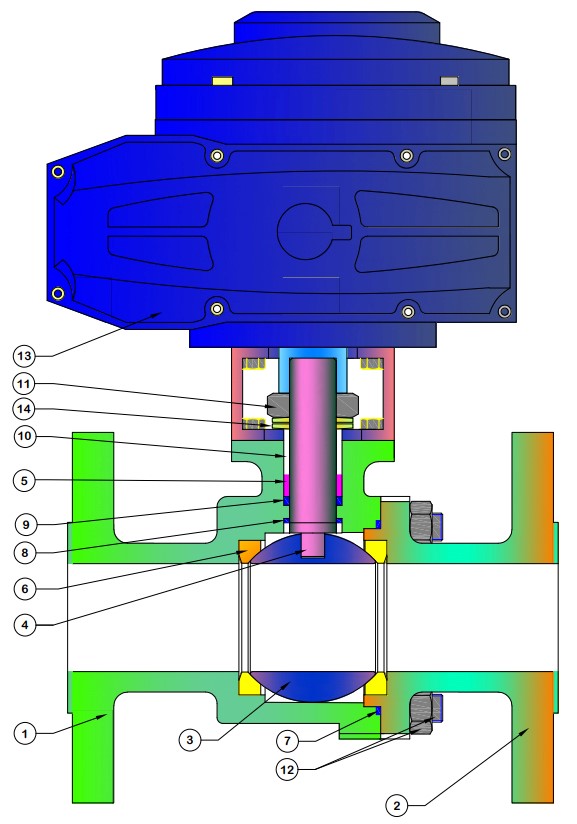

| No. | Description | Material |
|---|---|---|
| 1 | Body | WCB / S.S. 304 / S.S. 316 |
| 2 | End Connector | WCB / S.S. 304 / S.S. 316 |
| 3 | Ball | S.S. 304 / S.S. 316 |
| 4 | Stem Pin | AISI 410 / S.S. 304 / S.S. 316 |
| 5 | Spacer Sear Top | PTFE / CFT / GFT |
| 6 | Ball Seat | PTFE / CFT / GFT |
| 7 | Connector O Ring | PTFE / CFT / GFT |
| 8 | Stem Seat Bottom | PTFE / CFT / GFT |
| 9 | Stem Seat Top | PTFE / CFT / GFT |
| 10 | Gland Bush | PTFE / CFT / GFT |
| 11 | Gland | WCB/S.S. 304/ S. S. 316 |
| 12 | Fitting Nut + Washer | S.S. |
| 13 | Electrical Actuator | Standard |
| Valve Size | PORT | L1 | ØD | b | Øg | f | ØJ | f | PCD | |
|---|---|---|---|---|---|---|---|---|---|---|
| MM | Inch | ±1mm | ±3mm | ±2mm | ±2mm | ±1mm | ±1.5mm | |||
| 15MM | ½" | 13 | 108 | 90 | 8 | 34.9 | 2 | 15.9 | 4 | 60.3 |
| 20MM | ¾" | 19 | 117 | 100 | 8.9 | 42.9 | 2 | 15.9 | 4 | 69.9 |
| 25MM | 1" | 25 | 127 | 110 | 9.6 | 50.8 | 2 | 15.9 | 4 | 79.4 |
| 32MM | 1.1/4" | 32 | 140 | 115 | 11.2 | 63.5 | 2 | 15.9 | 4 | 88.9 |
| 40MM | 1.1/2" | 38 | 165 | 125 | 12.7 | 73 | 2 | 15.9 | 4 | 98.4 |
| 50MM | 2" | 49 | 178 | 150 | 14.3 | 92.1 | 2 | 19.05 | 4 | 120.7 |
| 65MM | 2.1/2" | 62 | 190 | 180 | 15.9 | 104.8 | 2 | 19.05 | 4 | 139.7 |
| 80MM | 3" | 74 | 203 | 190 | 17.5 | 127 | 2 | 19.05 | 4 | 152.4 |
| 100MM | 4" | 100 | 229 | 230 | 22.3 | 157.2 | 2 | 19.05 | 8 | 190.5 |
| 125MM | 5" | 125 | 254 | 255 | 22.3 | 185.7 | 2 | 22.2 | 8 | 215.9 |
| 150MM | 6" | 150 | 267 | 280 | 23.9 | 215.9 | 2 | 22.2 | 8 | 241.3 |
| 200MM | 8" | 201 | 292 | 345 | 27 | 269.9 | 2 | 22.2 | 8 | 298.5 |
| Valve Size | PORT | L | ØD | b | Øg | f | ØJ | f | PCD | |
|---|---|---|---|---|---|---|---|---|---|---|
| MM | Inch | ±1mm | ±3mm | ±2mm | ±2mm | ±1mm | ±1.5mm | |||
| 15MM | ½" | 13 | 140 | 95 | 12.7 | 34.9 | 2 | 15.9 | 4 | 66.7 |
| 20MM | ¾" | 19 | 152 | 115 | 14.3 | 42.9 | 2 | 19.05 | 4 | 82.6 |
| 25MM | 1" | 25 | 165 | 125 | 15.9 | 50.8 | 2 | 19.05 | 4 | 88.9 |
| 32MM | 1.1/4" | 32 | 178 | 135 | 17.5 | 63.5 | 2 | 19.05 | 4 | 98.4 |
| 40MM | 1.1/2" | 38 | 190 | 155 | 19.1 | 73 | 2 | 22.2 | 4 | 114.3 |
| 50MM | 2" | 49 | 216 | 165 | 20.7 | 92.1 | 2 | 22.2 | 8 | 127 |
| 65MM | 2.1/2" | 62 | 241 | 190 | 23.9 | 104.8 | 2 | 22.2 | 8 | 149.2 |
| 80MM | 3" | 74 | 282 | 210 | 27 | 127 | 2 | 22.2 | 8 | 168.3 |
| 100MM | 4" | 100 | 305 | 255 | 30.2 | 157.2 | 2 | 22.2 | 8 | 200 |
| 125MM | 5" | 125 | 381 | 280 | 33.4 | 185.7 | 2 | 22.2 | 8 | 235 |
| 150MM | 6" | 150 | 403 | 320 | 35 | 215.9 | 2 | 22.2 | 12 | 269.9 |
| 200MM | 8" | 201 | 419 | 380 | 39.7 | 269.9 | 2 | 25.4 | 12 | 330.2 |
