Pneutork solenoid valves are the best for the inflammable media. The Flame proof Explosion proof solenoid coils are available in such application.
Compact design, lightweight & long durability
Constructed from advanced technology & design
Easy installation, Universal mounting.
Normally Close (N/C) / Normally Open (N/O)

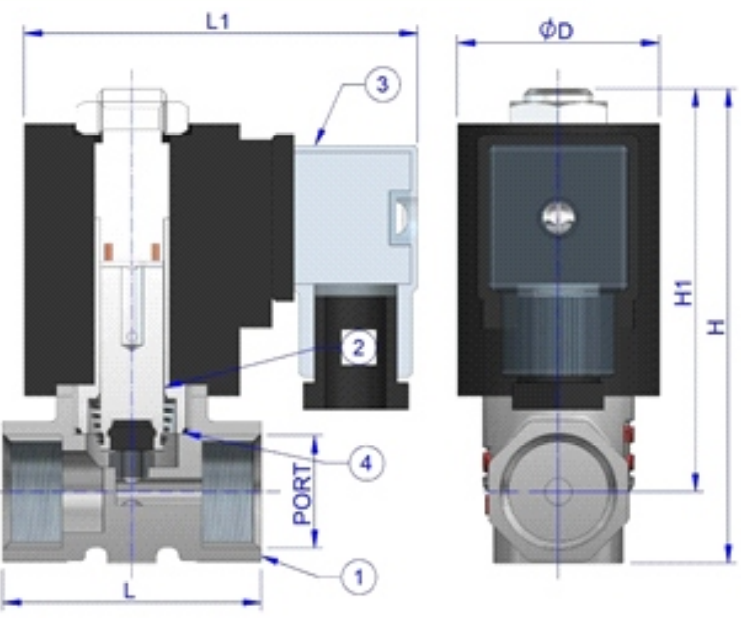

| Valve Size | L | ØD | L1 | H | H1 |
|---|---|---|---|---|---|
| 6 1/2" | 43 | 40 | 75 | 83 | 72 |
| 10 3/4" | 48 | 40 | 75 | 88 | 75 |
| 15 1/2" | 48 | 40 | 75 | 88 | 75 |
| No. | Description | Material | Qty. |
|---|---|---|---|
| 1 | Body | CF8/CF8M | 01 |
| 2 | Solenoid Coil Casing | STD. | 01 |
| 3 | Housing Plunger Set | STD | 01 |
| 4 | Solenoid Coil | STD. | 01 |
| 5 | Plunger O Ring | NBR/EPDM/VITON | 01 |
| Voltage | 230VAC | 110VAC | 24VDC | 24VDC | 12VDC |
| Power | 9W | 9W | 9W | 11W | 11W |
| Temperature of fuids | -5ºC to 85ºC (High temperature On request) |
|---|---|
| Coil Voltage | 24V, 110V, 230V AC/DC |
| Ends | Screwed End / Socket Weld |
| Media | Air/Gas/Oil/Water/Chemical/ Hot Water |
Reach out for tailored solutions. Our team is ready to assist. Submit an inquiry and experience excellence in valve automation solutions.
