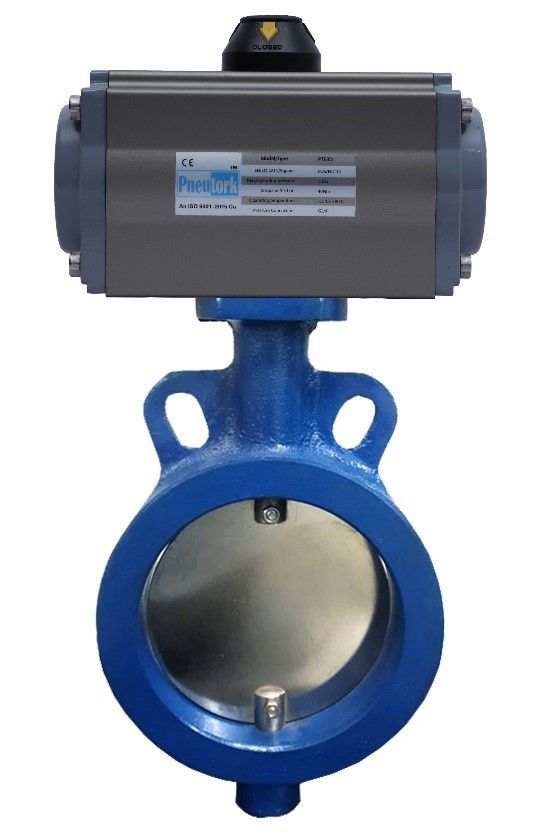

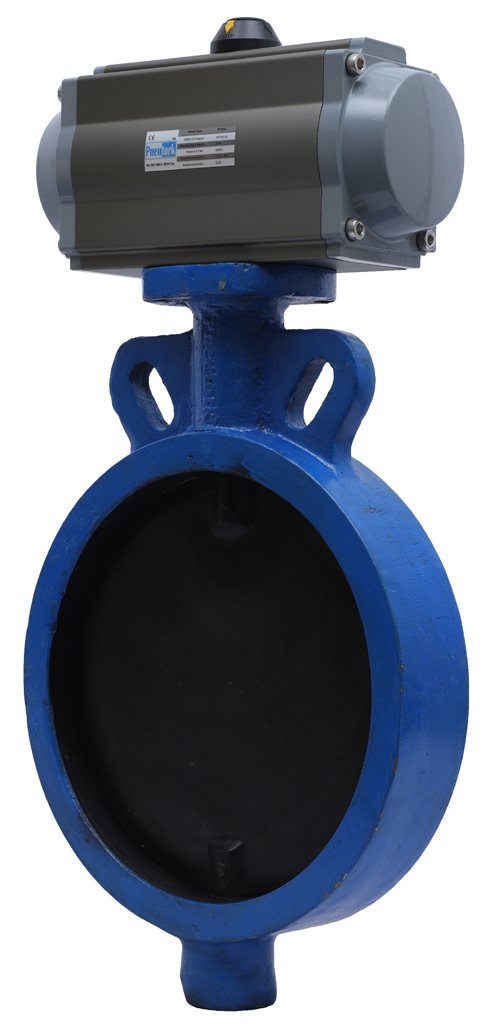

Pneutork offers ISO 5211 standard pneumatic rotary actuator operated flow control application of Air and Gas. Butterfly Valve Specification.
On/Off Actuator
NAMUR Standard solenoid valve in all standard coil voltage
(Flame proof solenoid coil on request)
Pneumatic & Electro pneumatic valve positioner.
Declutchable able Manual Over ride
Limit Switch for on/off indication at panel board.
Air filter + Regulator combination with pressure Gauge
Air Lock Valve
| Valve Type | Wafer type Damper Valve with Metal to Metal |
|---|---|
| Body Type | Short Wafer Type (sandwiched between flanges) Damper |
| Seat Type | Metal to Metal |
| End Connection | Wafer Sandwiched |
| Pressure Rating | PN 6 (Maximum) |
| Oper. Temp. Range | -20ºC to 400ºC (Depending on MOC) upto 600ºC |
| Seat Leakage | 5% Leakage of full flow (class 1 available On Request) |
| Item | Type of Test | Testing Pressure |
|---|---|---|
| Actuator | Pneumatic Bubble Test | 180 PSI to 150 PS |
| Valve body | Hydraulic | 10 Kg/Cm |
| Seat | Hydraulic | 5% leakage |

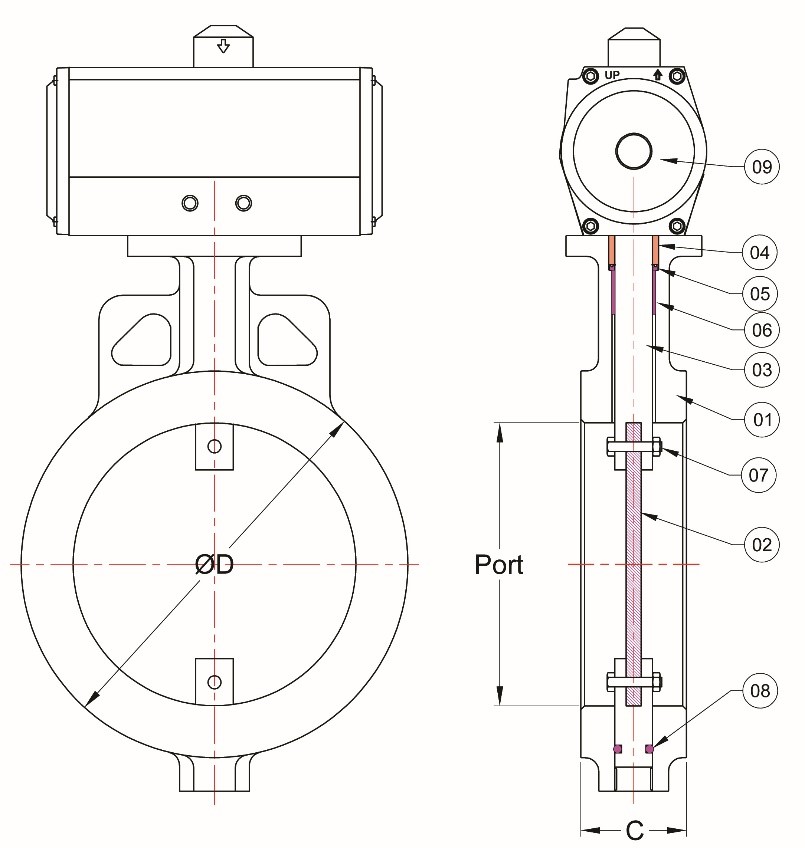

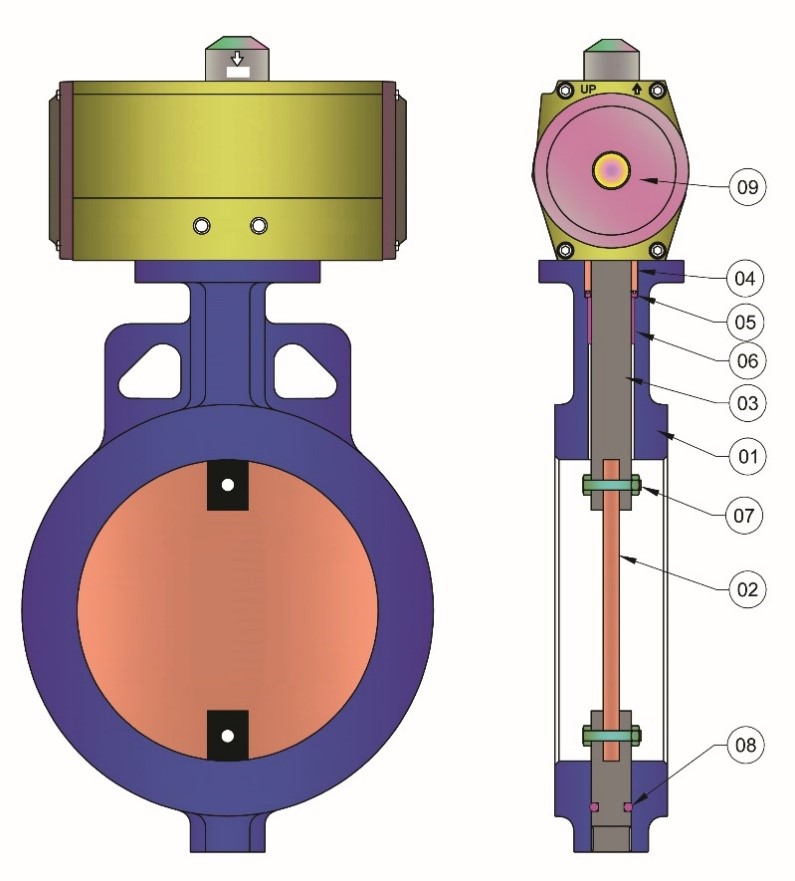

| No. | Description | Material |
|---|---|---|
| 1 | Body | Cast iron/ WCB / S. S. 304 / S. S. 316 |
| 2 | Disc | S. G. Iron / S. S. 304 / S. S. 316 |
| 3 | Shaft | AISI 410 / AISI 304 / AISI 316 |
| 4 | Teflon Bush | Teflon |
| 5 | Gland Ring | Graphite |
| 6 | Bearing Bush | Metal Bush PTFE Coated |
| 7 | Nut & Bolt | S. S. 202 / S. S. 304 |
| 8 | Bottom Ring | Graphite |
| 9 | Pneumatic Actuator | Standard |
|
Valve Size
MM |
Inch |
Port
±1MM |
C
±2MM |
ØD
±5MM |
|---|---|---|---|---|
| 40 | 1.1/2” | 40 | 33.5 | 85 |
| 50 | 2" | 50 | 43.5 | 80 |
| 65 | 2.1/2" | 65 | 46 | 102 |
| 80 | 3" | 80 | 46 | 125 |
| 100 | 4" | 100 | 52 | 139 |
| 125 | 5" | 125 | 56 | 168 |
| 150 | 6" | 150 | 56 | 204 |
| 200 | 8" | 200 | 60 | 252 |
| 250 | 10" | 245 | 68 | 316 |
| 300 | 12" | 295 | 78 | 362 |
| 350 | 14" | 340 | 78 | 405 |
| 400 | 16" | 388 | 78 | 470 |
| 450 | 18" | 450 | 90 | 540 |
| 500 | 20" | 490 | 90 | 595 |
