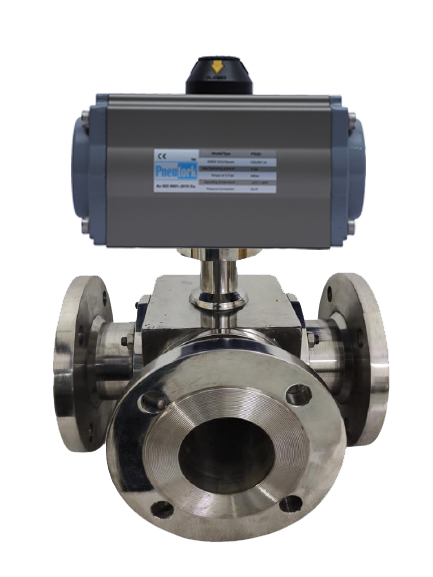

Pneutork offers ISO 5211 standard pneumatic rotary actuator operated 3 way / 4 way design sand casting / bar stock body WB/CF8/CF8M ball valve engineered for multiple diverting / mixing operation in down stream. Type : L port / T port, X port in reduce bore.
On/Off Actuator
NAMUR Standard solenoid valve all standard coil voltage
Pneumatic & Electro pneumatic valve positioner.
(Flame proof solenoid coil on request)
Declutchable Manual Over ride
Limit Switch for on/off indication at panel board.
Air filter + Regulator combination with pressure Gauge
Air Lock Valve
| Type of Valve Body & Ball | Full port on/off type |
|---|---|
| Working Pressure | 10 Bar |
| Working Temperature | Upto 180ºC |
| Pressure Rating | 150#/300# |
| Leakage Class | Class VI |
| Working Fluid | Air, Water & OIL |
| Design and Manufacting | ASME B16.34 / API 6D / BS EN ISO 17292 |
|---|---|
| Valve Face to Face Dimension | ANSI B16.10 |
| Flange Standard Conformity | ASME B16.5 Class 150 |
| Inspection & Testing | API 598 |

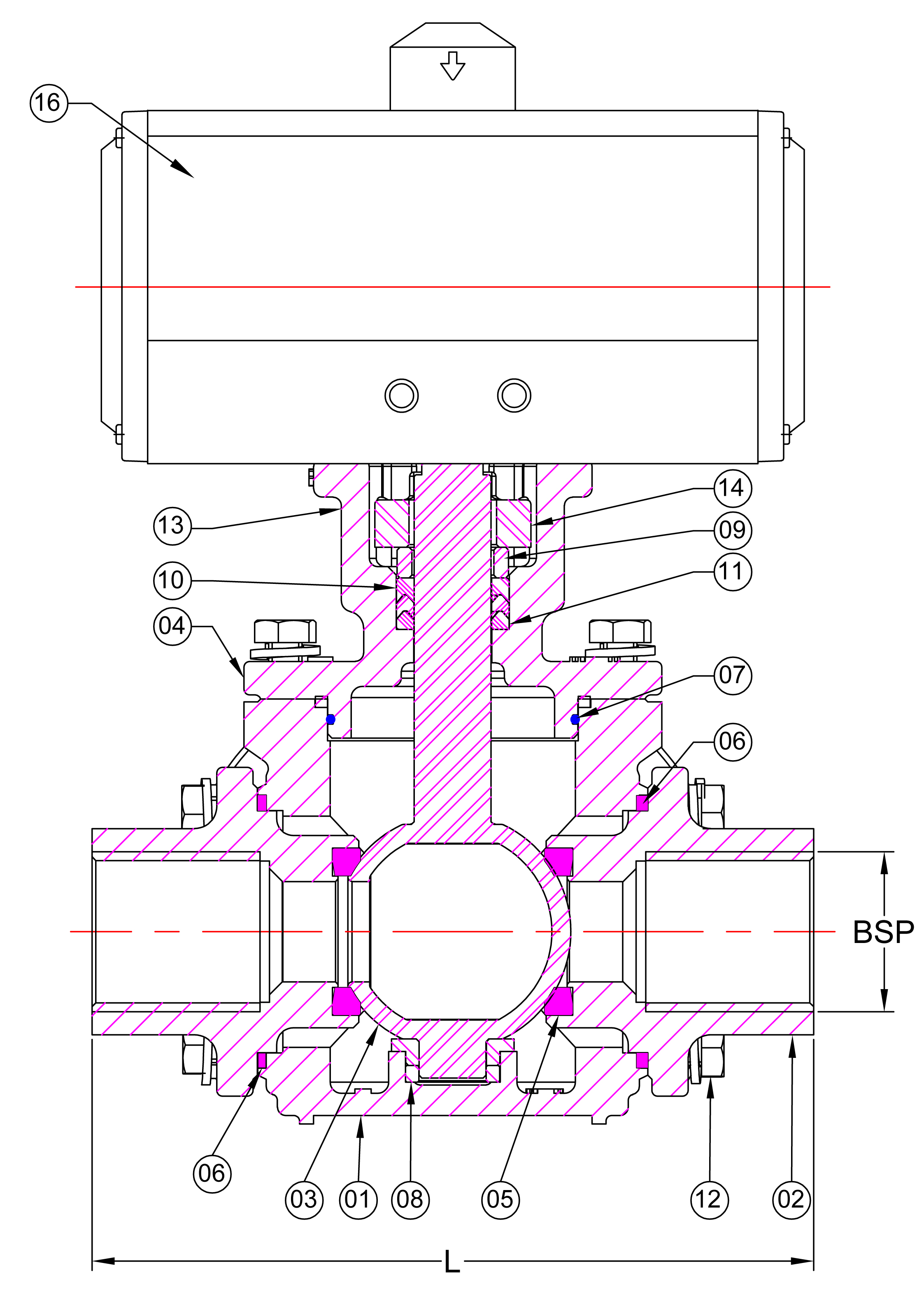

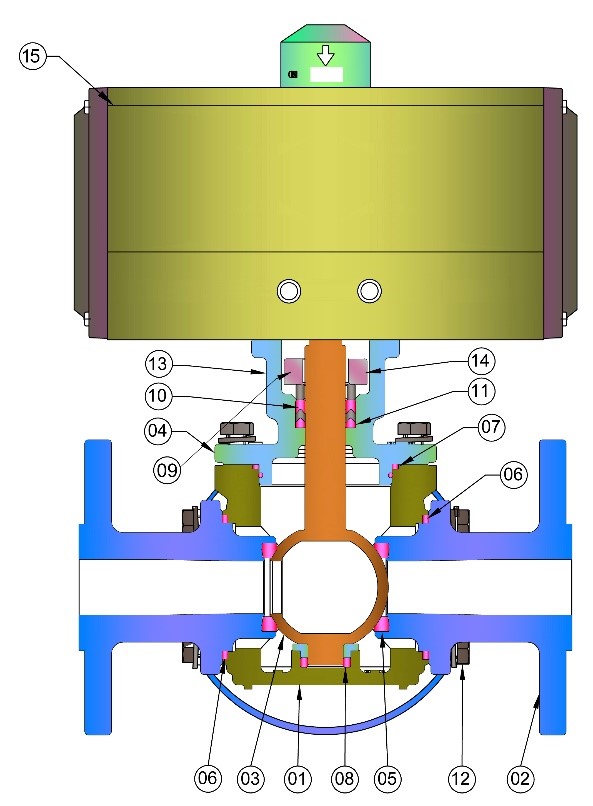

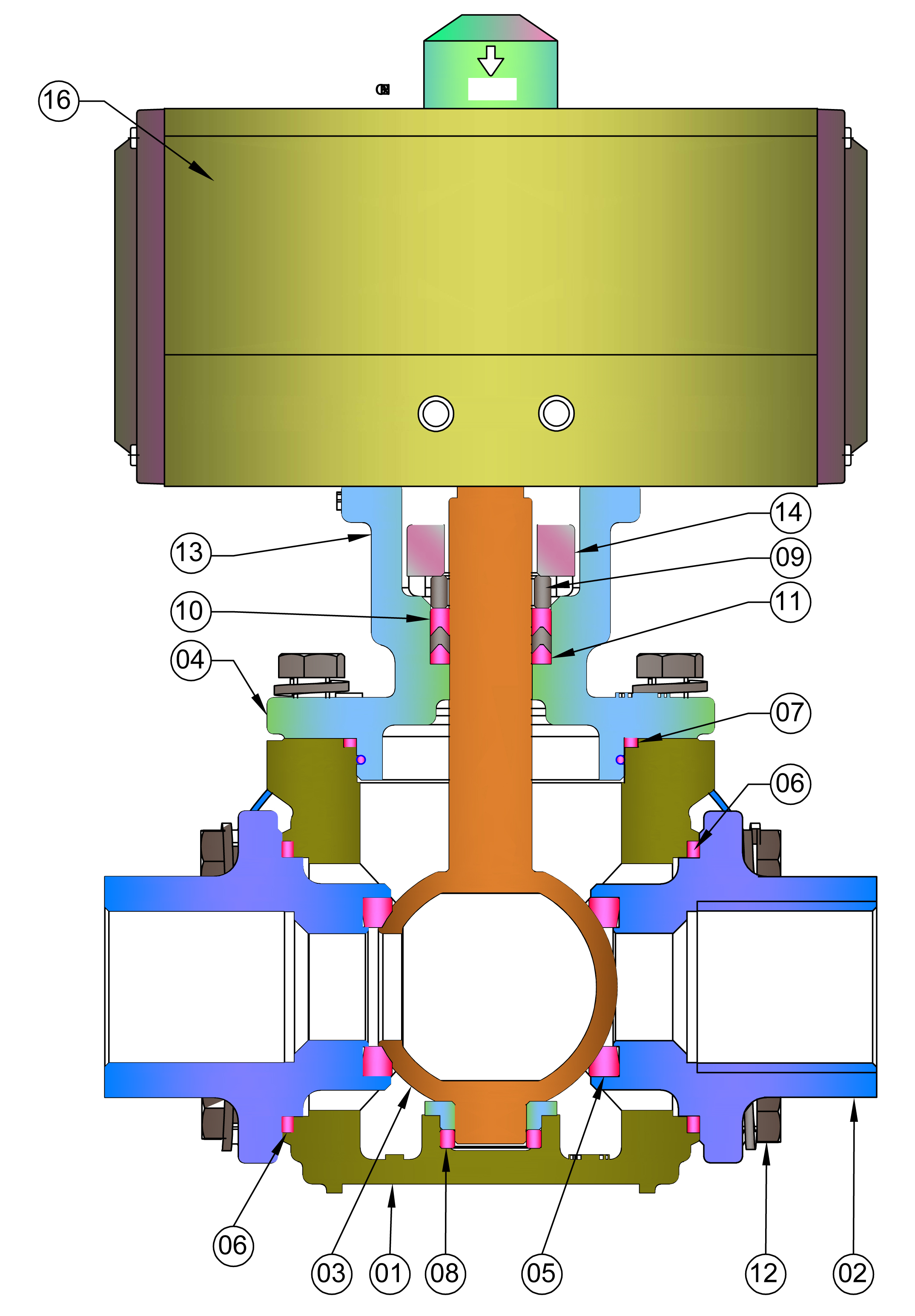

| No. | Description | Material | QTY |
|---|---|---|---|
| 1 | Body | WCB / CF8 / CF8M | 01 |
| 2 | End Connector | WCB/CF8/CF8M | 01 |
| 3 | Ball | CF8/CF8M | 01 |
| 4 | Ball Seat | PTFE/GFT/CFT | 02 |
| 5 | Body Seat | PTFE/GFT/CFT | 01 |
| 6 | Stem Pin | S. S. 304 / 316 | 01 |
| 7 | Stem Seat | PTFE/GFT/CFT | 05 |
| 8 | Gland Bush | S.S.304/316 | 01 |
| 9 | Gland | CF8/CF8M | 01 |
| 10 | Hex Bolt + Spring Washer | S. S. 304 | 04 |
| 11 | Bracket | S. S. 304 | 01 |
| 12 | Bracket Fitting Hex Bolt + Spring Washer | S. S. 304 | 04 |
| 13 | Gland Hex Bolt | S. S. 304 | 02 |
| 14 | Actuator | STD. | 01 |
|
Valve Size
MM |

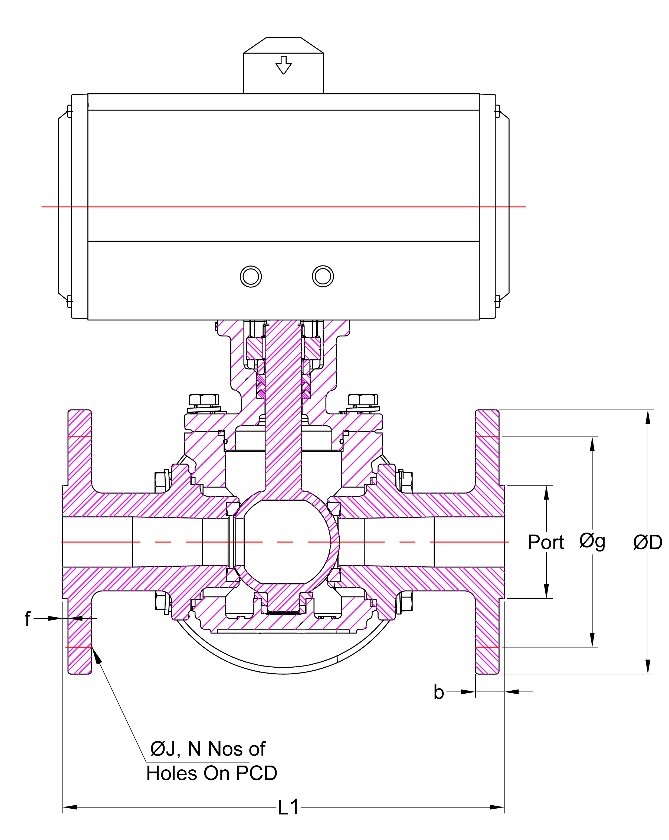

Inch | Port | L1 | L SCREWED | L1 | ØD | Øg | b | f | N | ØJ | PCD |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 15 | 1/2" | 13 | 71 | 13 | 108 | 90 | 34.9 | 8.5 | 2 | 4 | 15.9 | 60.3 |
| 20 | 3/4" | 19 | 83 | 19 | 117 | 100 | 42.9 | 8.9 | 2 | 4 | 15.9 | 69.9 |
| 25 | 1" | 25 | 89 | 25 | 127 | 110 | 50.8 | 9.6 | 2 | 4 | 15.9 | 79.4 |
| 40 | 1.1/2" | 38 | 134 | 38 | 165 | 125 | 73 | 12.7 | 2 | 4 | 15.9 | 98.4 |
| 50 | 2" | 49 | 150 | 49 | 178 | 150 | 92.1 | 14.3 | 2 | 4 | 19.05 | 120.7 |
| 65 | 2.1/2" | 64 | 177 | 62 | 190 | 180 | 104.8 | 15.9 | 2 | 4 | 19.05 | 139.7 |
| 80 | 3" | 74 | 199 | 74 | 203 | 190 | 127 | 17.5 | 2 | 8 | 19.05 | 152.4 |
| 100 | 4" | 98 | 265 | 100 | 305 | 230 | 157.2 | 22.3 | 2 | 8 | 19.05 | 190.5 |
| 125 | 5" | 127 | N/A | N/A | 356 | 255 | 185.7 | 22.3 | 2 | 8 | 22.2 | 215.9 |
| 150 | 6" | 150 | N/A | N/A | 394 | 280 | 215.9 | 23.9 | 2 | 8 | 22.2 | 241.3 |
| 200 | 8" | 201 | N/A | N/A | 600 | 345 | 269.9 | 27 | 2 | 8 | 22.2 | 298.5 |
