DIRECT MOUNT POSITIONER FOR LINEAR / ROTARY MOTION OPERATION

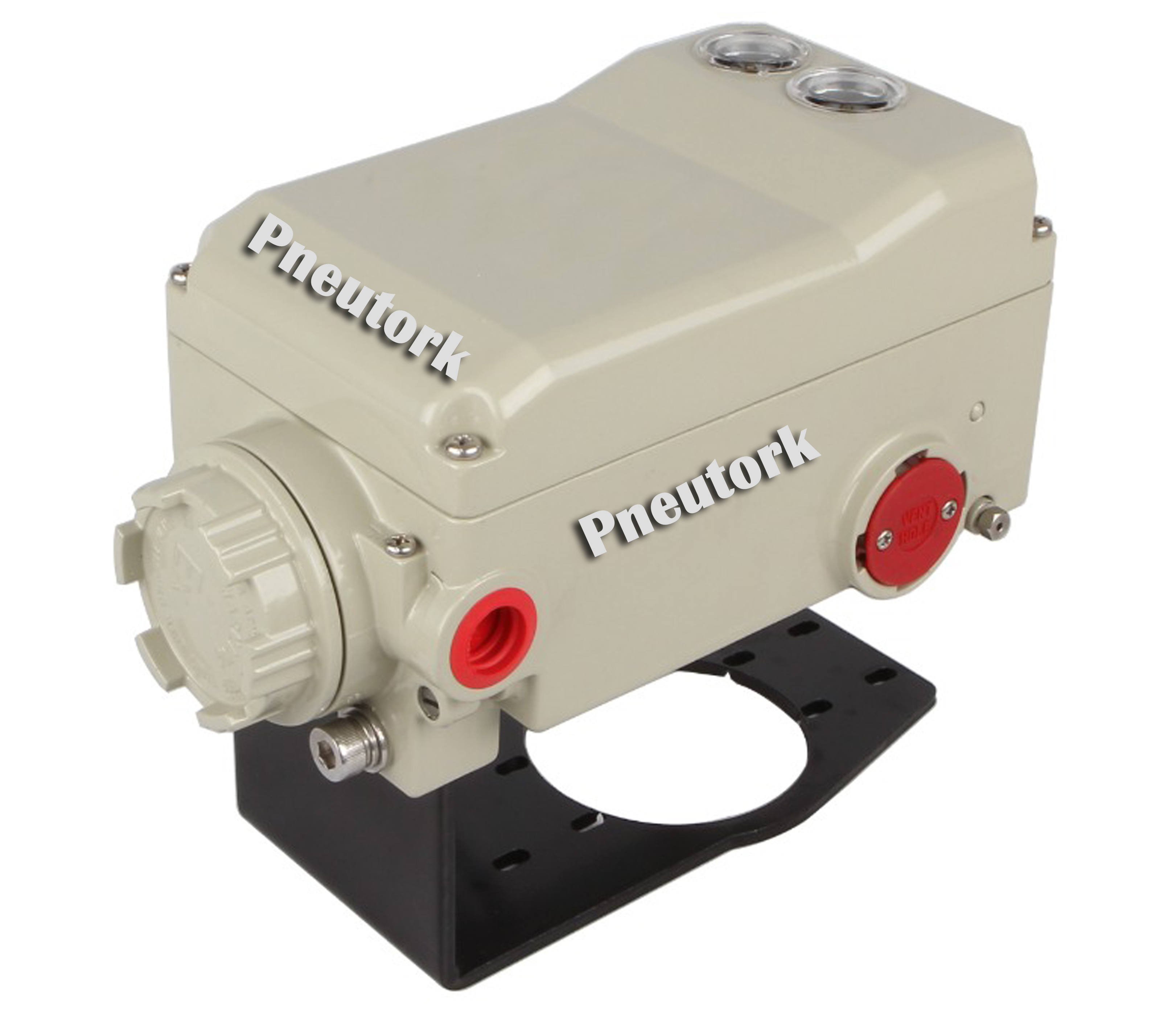

L8A-100 electric valve positioner is a kind of receiving 4～20mA DC current signal control, which is operated by pneumatic a device to precisely adjust the valve opening. The positioner comes with an air filter pressure reducer to display the valve position opening on site (Percentage) and output feedback signal (4~20mA), directly connect the compressed air in the pressure range of 5~10kgf/cm2 to the "SUP" input interface of the positioner
| Project | L8A-100L | L8A-100R | |||
|---|---|---|---|---|---|
| Single Acting | Double Acting | Single Acting | Double Acting | ||
| Input Signal | 4~20mA DC | ||||
| Impedance | 250±150 (Model Without Feed Back) | ||||
| Supply Pressure | 1.4~7.0kgf/cm2 (20~100psi) | ||||
| Journey | 10~150mm | 0°~90° | |||
| Air source | PT(NPT) 1/4 | ||||
| Pressure Gauge Interface Size | PT(NPT) 1/8 | ||||
| Power Interface Size | PF 1/2(G1/2) | ||||
| Protection Level | Ip66 | ||||
| Ambient Temperature | Work Temperature |
Standard: -20~70°
Low Temperature Type: -40~70°(-20°C No display Below) |
|||
| Explosion proof Temperature | -20~60° | ||||
| Linear | ±1.0% F.S | ||||
| Hysteresis | 1.0% F.S | ||||
| Sensitivity | ±0.2% F.S | ±0.5%F.S | ±0.2% F.S | ±0.5% F.S | |
| Repeatability | ±0.5% F.S | ||||
| Air Consumption | 3LPM (Sup=1.4kgf/cm²,20psi) | ||||
| Flow | 80LPM (Sup=1.4kgf/cm²,20psi) | ||||
| Material | Die Cast Aluminium | ||||
| weight | 2.5kg | 2.5kg | |||
| Model with number display function/with feedback function | |||||
| Input Signal | 4~20mA DC (Two wire system) | ||||
| Input Load Voltage | MAX 15 | ||||
| Feedback Signal | 4-20 mA DC (Two-wire System) | ||||
| Feedback Power Signal | DC 24V±15% | ||||
| 1 Action Form | L Straight Stroke |
4. Additional Functions
5. Pl with LCD display, 4~20mA signal feed back Pressure reducing valve AS 4 |
| R Angular Stroke | ||
| 2 Output | S Single Acting | |
| D Double Acting | ||
| 3 Structure | I Intrinsically Safe Ex M iaII CT6 | |
| N Flameproof Ex dII CF6 Ordinary not explosion-proof |
