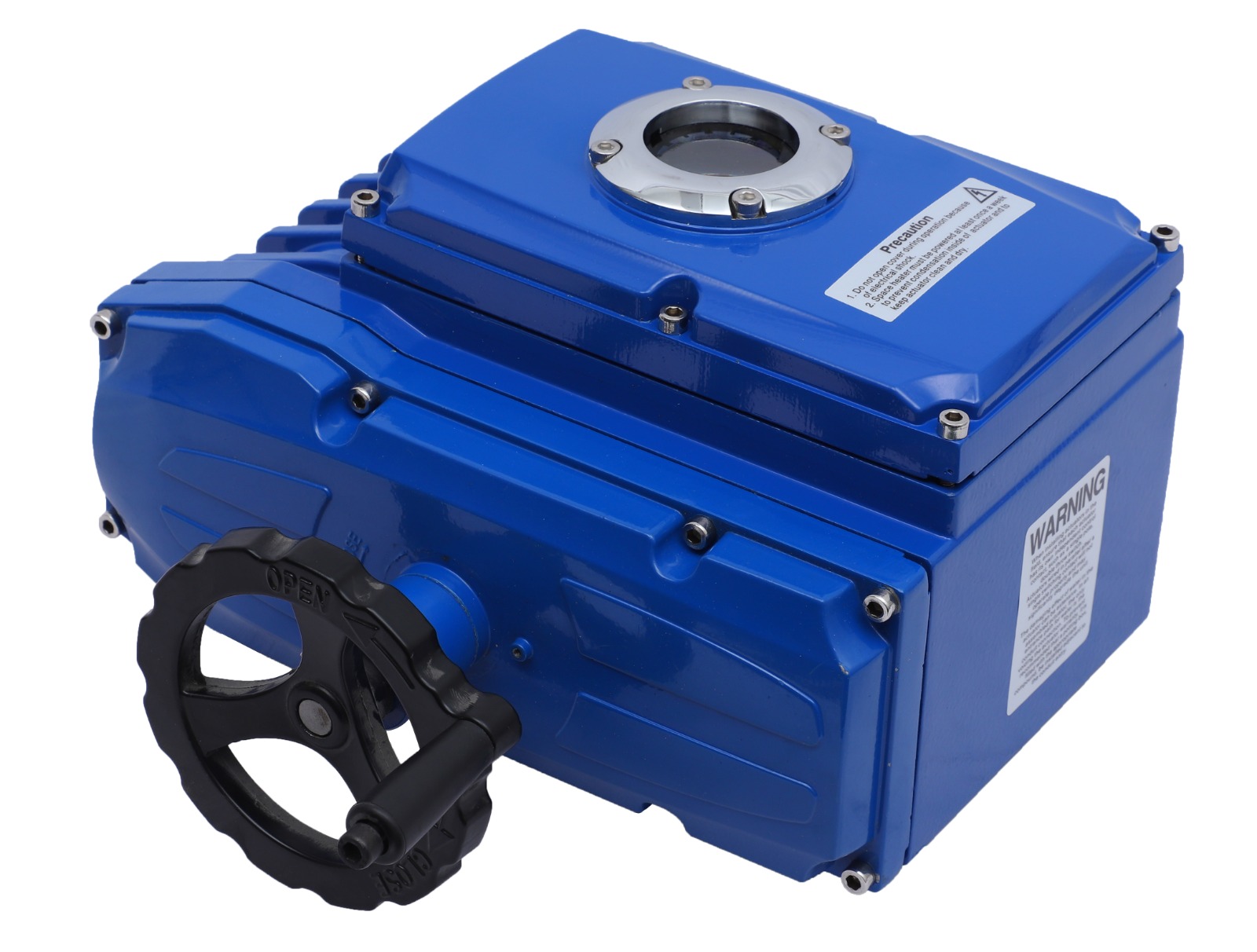

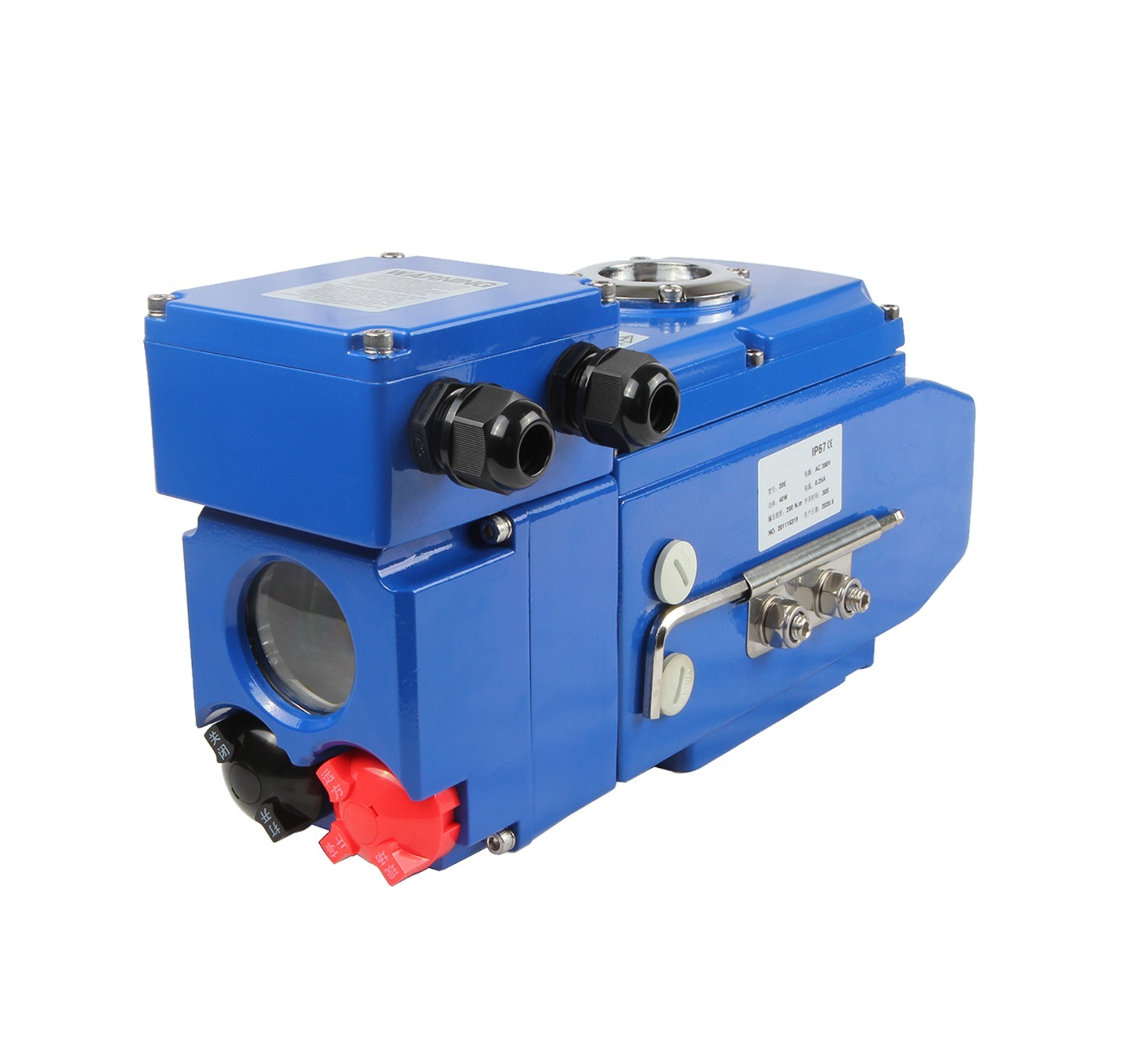

Pneutork PTL series electric actuator is used for controlling 0°-270° rotation of the valves and other similar products, such as butterfly valve, ball valve, damper, flapper valve, plug valve, louver valve and so on. It widely applies to petroleum, chemical, water treatment, shipping, paper making, power plant, heating, light industry and other industries. It can be driven by 380V/220V/110V AC power or 24V/110V DC power, inputs 4-20mA current signal or 0-10V DC voltage signal as control signal. It moves the valve to the right position, and achieves automatic control, its maximum output torque is 2000N·M. (CE certificate approved).
The body is made of hard aluminum alloy with anodize treatment and polyester powder coating. It is highly corrosion-resistant and waterproof level is IP67. IP68 is optional.
Fully enclosed squirrel-cage motor with small size, large torque, small inertia force and F class insulation rating. Internal hot protection switch avoids damaging of the motor

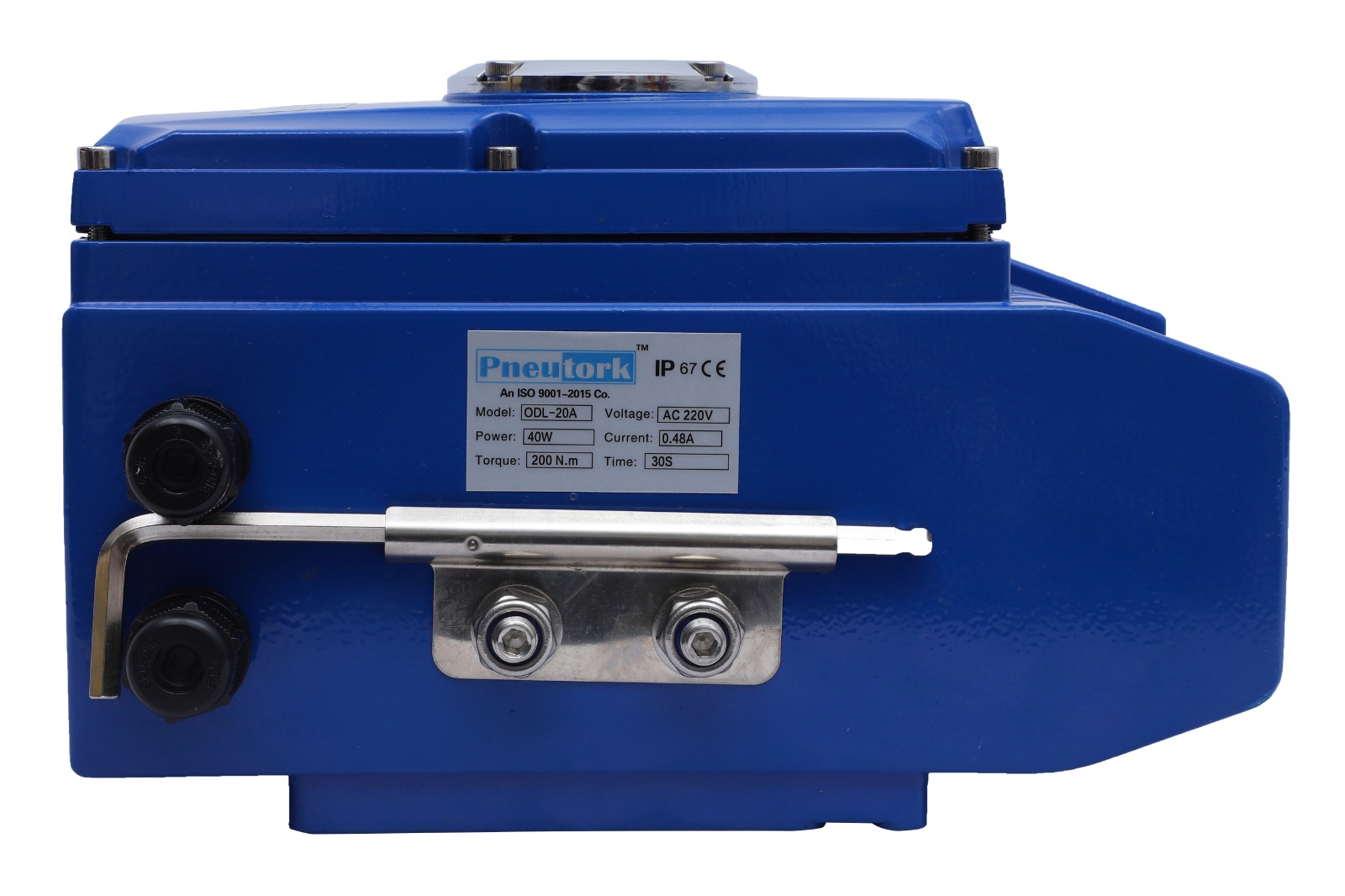

The design of spanner is safe, reliable, labor-saving and small. When the actuator is not energized, it can be operated by handle. When you don t need manual operation, put the spanner in the slot on back side of the actuator.
Installed in the center axis for observing position of valve. To avoid ponding and observe conveniently, it is designed by convex lens.
It has good seal performance. And its protection class is IP67, also IP68 is optional
Mechanical and electronic double limit. Mechanical limit screw is adjustable, safe and reliable. Electronic limit switch is controlled by the cam. Position of limit switch can be set accurately and conveniently by simple adjustment.
Precise worm and worm gear transfer large torque efficiently with low noise (max. 50 dB) and long life. The self-lock function prevents inversion and insure stability and reliability. High-effective lubricant oil has been added ex-factory, it doesn’t need to add any more.
The bolt will attach to the cover when removing the cover. All external bolts are made of stainless steel.
Installation size at the bottom of Electric Actuator meets international standard ISO5211 and DIN3337. The output hole is Di tetragon that it is easy to install by linear or 45°. The actuator can be installed vertically or horizontally. 10. Circuit Controlling circuit meets single-phase or three-phase power supply standard with reasonable and compact layout. Terminals meet various of additional functional requirements effectively.
| Model | MAX OUTPUT TORQUE | OPERATING TIME TO 90° S | MOTOR (W) | SINGLE PHASE RATED CURRENT(A) | WEIGHT | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| N-M | AC | DC | AC | DC | AC24V | AC110V | AC220V | AC380V | DC24V | DC220V | KG | |
| PTL-003 | 30 | 30 | / | 8 | / | / | / | 0.2 | / | / | / | 2.1 |
| PTL-005 | 50 | 30 | 10 | 10 | 15 | 2.2 | 0.48 | 0.24 | 0.15 | 1.2 | 0.15 | 3.4 |
| PTL-010 | 100 | 30 | 10 | 16 | 25 | 3 | 0.64 | 0.32 | 0.25 | 1.6 | 0.2 | 4.6 |
| PTL-015 | 150 | 30 | 10 | 23 | 25 | 3.8 | 0.68 | 0.35 | 0.25 | 1.6 | 0.2 | 4.6 |
| PTL-020 | 200 | 30 | 15 | 40 | 40 | 5 | 0.9 | 0.48 | 0.25 | 2.6 | 0.3 | 11 |
| PTL-040 | 400 | 30 | 15 | 60 | 60 | 5 | 0.9 | 0.48 | 0.25 | 2.6 | 0.3 | 11.8 |
| PTL-060 | 600 | 30 | 15 | 90 | 70 | 8.5 | 2 | 0.92 | 0.45 | 4.5 | 0.5 | 12 |
| PTL-100 | 1000 | 40 | 25 | 130 | 100 | 9 | 2.2 | 1. | 0.48 | 5.0 | 0.6 | 12.5 |
| PTL-200 | 2000 | 40 | 25 | 160 | 100 | 9.8 | 2.6 | 1.1 | 0.51 | 5.0 | 0.6 | 12.5 |
| Model | A | B | C | D | E | F | G | I | J | K | O | P | 01 | P1 | QXH |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PTL-003 | 74 | 49 | 45 | 114 | 53 | 65 | 114 | 100 | 50 | 50 | 50 | 4-M6 | 36 | 4-M5 | 11X18 |
| PTL-005 | 89 | 72 | 45 | 125 | 57 | 82 | 114 | 100 | 66 | 66 | 70 | 4-M8 | 50 | 4-M6 | 14X20 |
| PTL-008 | 89 | 72 | 45 | 125 | 57 | 82 | 114 | 100 | 66 | 66 | 70 | 4-M8 | 50 | 4-M6 | 14X20 |
| PTL-010 | 109 | 80 | 45 | 126 | 67 | 85 | 114 | 100 | 100 | 90 | 70 | 4-M8 | 50 | 4-M6 | 17X23 |
| PTL-015 | 109 | 80 | 45 | 126 | 67 | 85 | 114 | 100 | 100 | 90 | 70 | 4-M8 | 50 | 4-M6 | 17X23 |
| PTL-020 | 152 | 116 | 45 | 167 | 93 | 117 | 114 | 100 | 140 | 130 | 125 | 4-M12 | 102 | 4-M10 | 27X43 |
| PTL-040 | 152 | 116 | 45 | 167 | 93 | 117 | 114 | 100 | 140 | 130 | 125 | 4-M12 | 102 | 4-M10 | 27X43 |
| PTL-060 | 152 | 116 | 45 | 167 | 93 | 117 | 114 | 100 | 140 | 130 | 125 | 4-M12 | 102 | 4-M10 | 27X43 |
| PTL-100 | 152 | 116 | 45 | 167 | 93 | 117 | 114 | 100 | 140 | 130 | 125 | 4-M12 | 102 | 4-M10 | 27X43 |
| PTL-200 | 152 | 116 | 45 | 167 | 93 | 117 | 114 | 100 | 140 | 130 | 125 | 4-M12 | 102 | 4-M10 | 27X43 |
| Actuator Body | Aluminium Alloy, Water Proof Level:Ip67, Nema4 Or 6 |
|---|---|
| Power Supply | 24/110/220/380v Ac ± 10%, 24v/110/220vdc 50/60hz ±10% |
| Motor | Suirrel-Cage Asynchronous Motor |
| Limit Switch | 2* Open/Close, Spdt, 250vac,10a |
| Assitant Limit Switch | 2* Open/Close, Spdt, 250vac,10a |
| Stroke | 90° -270± 10° (Please Inform Us If Over 90°) |
| Failure Protection/Operating Temperature | Internal Thermal Protection. Open : 120°c ± 5°c, Close : 97oc± 15oc |
| Indicator | Continuous Position Indicator |
| Manual Operation | Spanner (Option : Hand Wheel) |
| Self-Lock Device | Self-Lock By Worm And Worm Gear |
| Mechanical Limit | External Adjusting Bolts (2pieces) |
| Connecting Hole | M18 (2 Pieces) |
| Ambient Temperature | -20°c ~ +70°c |
| Lubrication | Aluminum-Base Greases (Ep Type) |
| Material | Steel, Aluminium Alloy, Aluminium Bronze, Polycarbonate |
| Ambinet Humidity | Max 90% Rh |
| Anti-Vibration | X Y Z 10g, 0.2~34hz, 30 Minutes |
| External Coating | Dry Powder Epoxy Polyester. |
